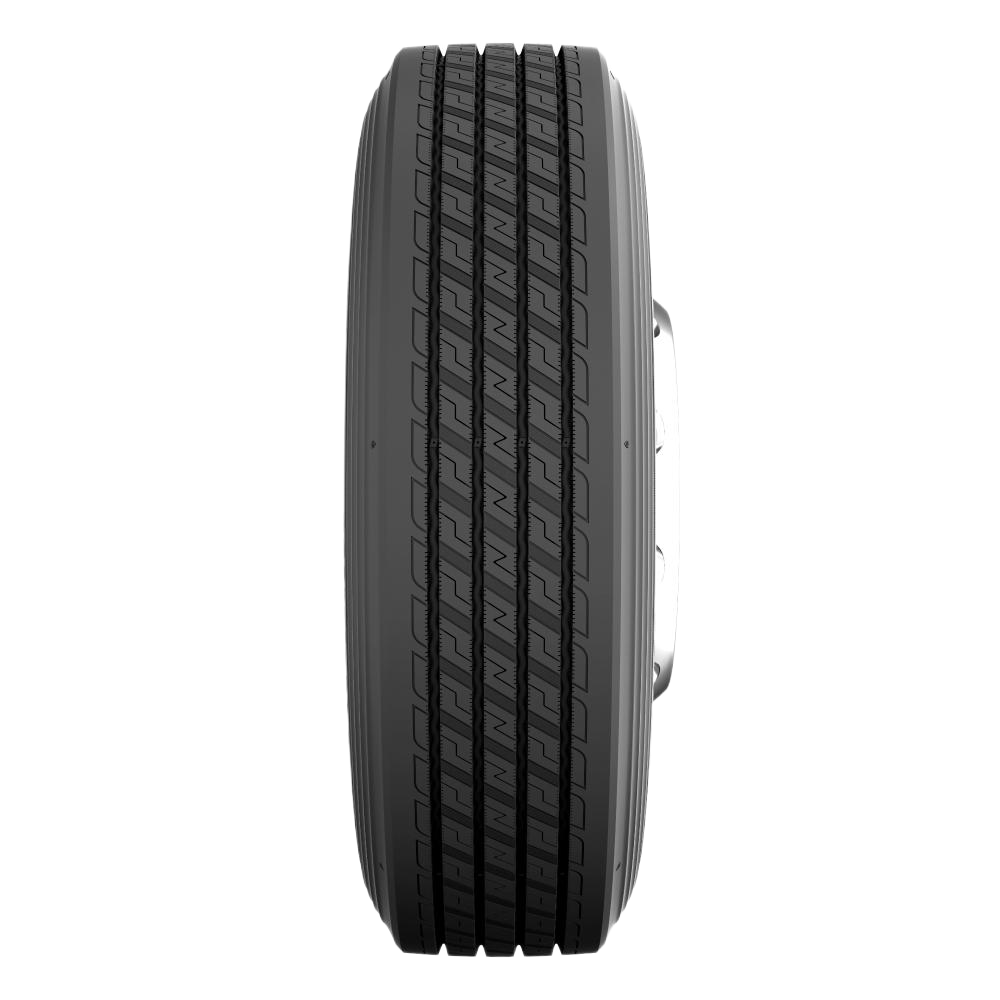

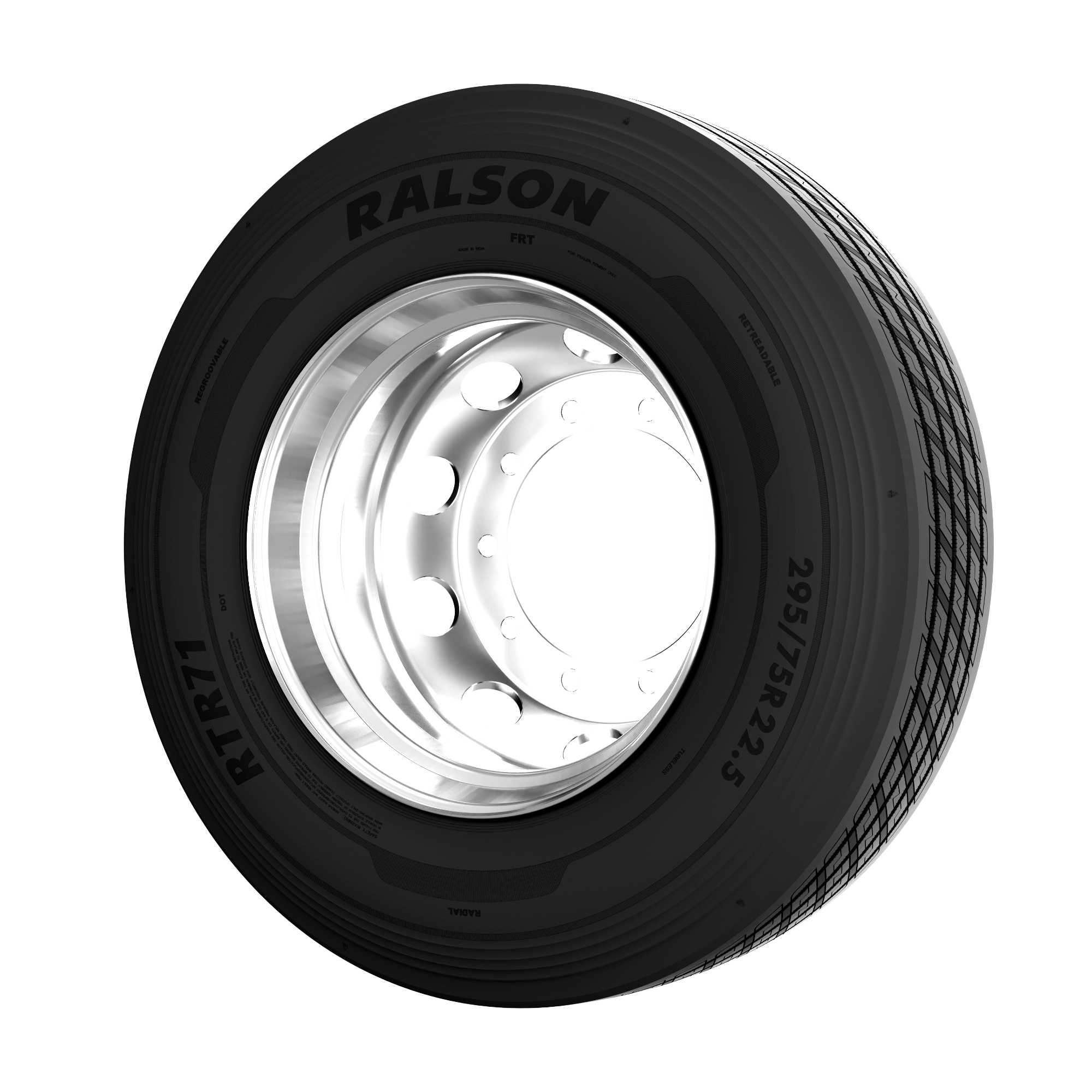

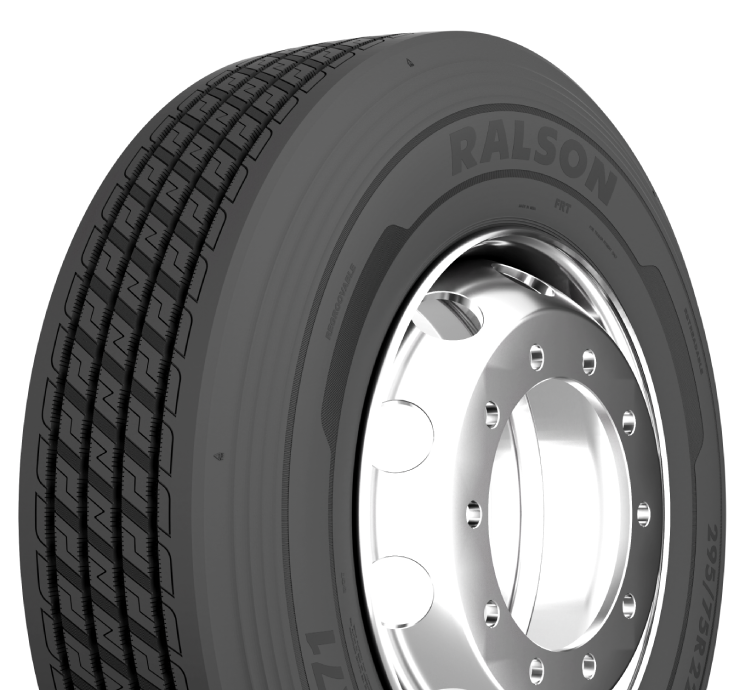

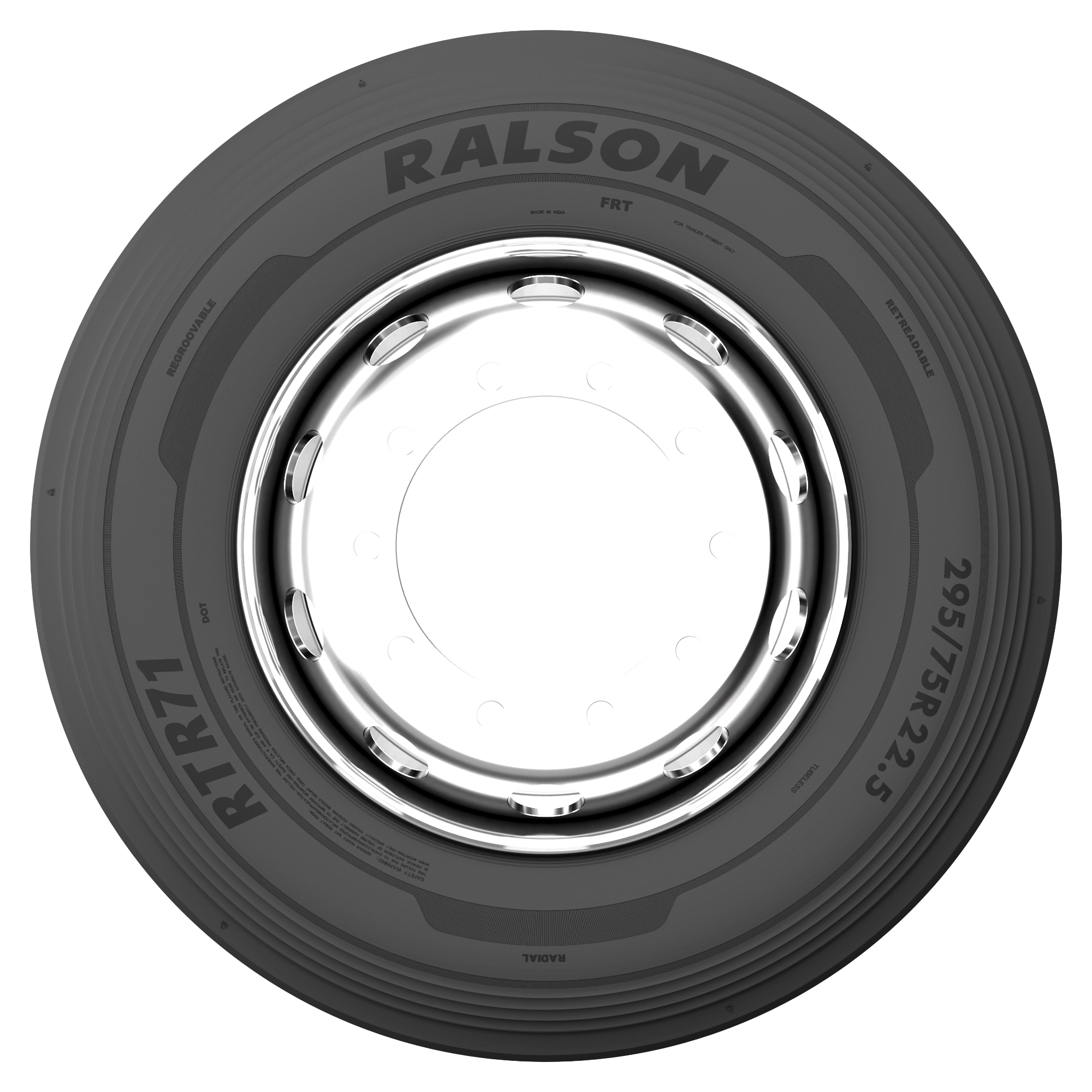

RTR71
Corrugated Cooling Fins
Ensure better heat dissipation for increased casing life.
Micro sipes
Create additional biting edges to enhance traction.
Chamfered shoulder
Design improves durability under lateral loads.
Balanced Rib Ratio
Evenly distributes pressure for high mileage and excellent driver comfort.
Optimized groove angle
Promotes self-cleaning and reduces stone retention.
Full-depth Multi-dimensional sipes
Provide higher mileage and even wear.
Advance polymers and reinforcing agents
Are used to maximise the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 18J | 148/145L | 12.7 | 8.25 | 1048 | 290 | 3150@830 | 2900@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 14G | 144/141M | 16.0 | 9.00 | 1014 | 299 | 6175/110 | 5675/110 |
| 295/75R22.5 | 16H | 146/143M | 16.0 | 9.00 | 1014 | 299 | 6610/120 | 6005/120 |
| 11R22.5 | 14G | 144/142L | 16.0 | 8.25 | 1048 | 288 | 6175/105 | 5840/105 |
| 11R22.5 | 16H | 146/143M | 16.0 | 8.25 | 1048 | 288 | 6610/120 | 6005/120 |
