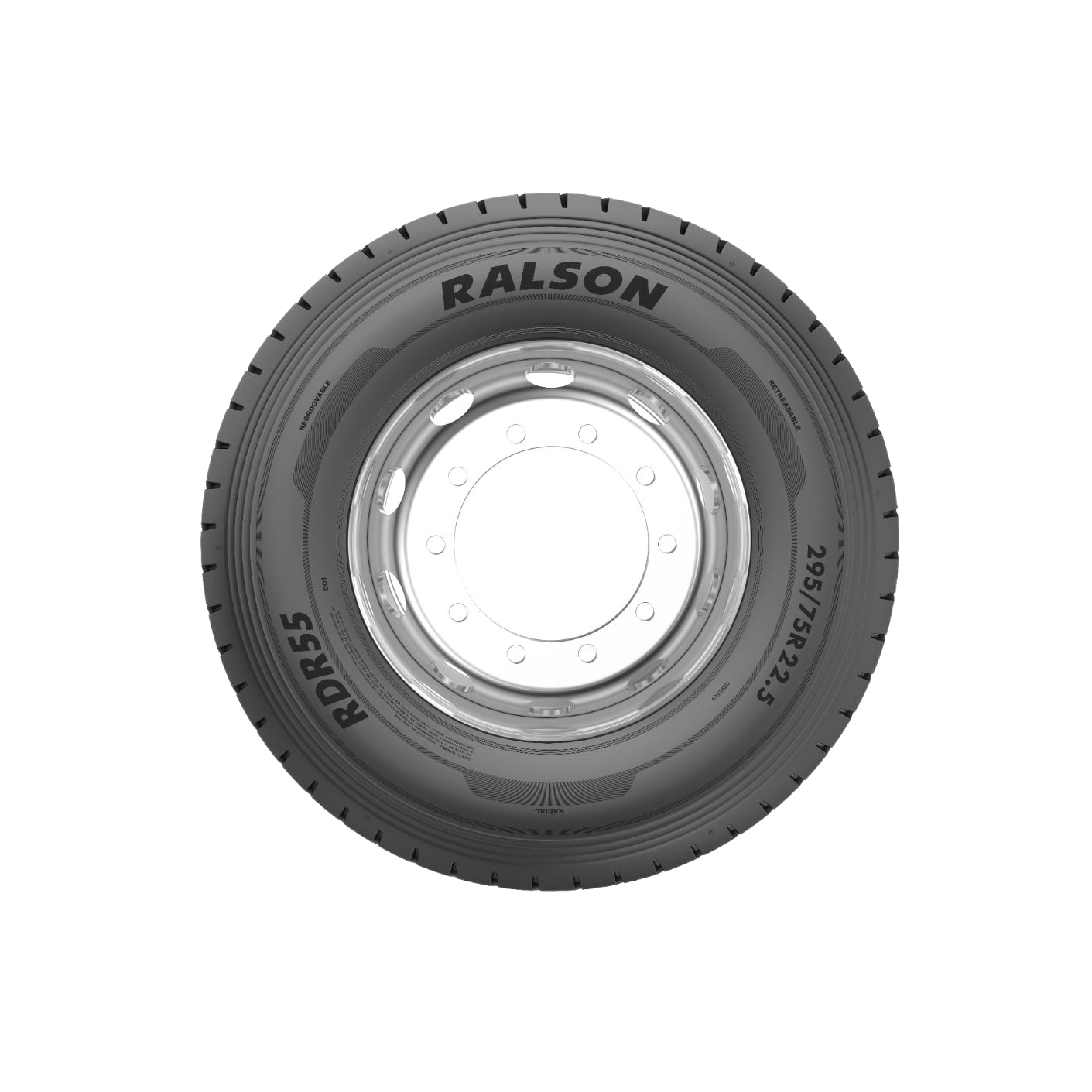

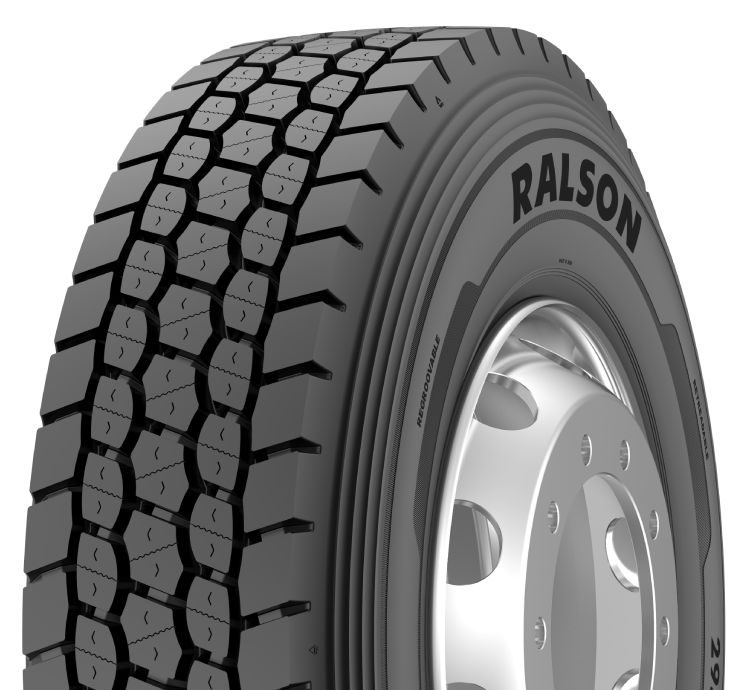

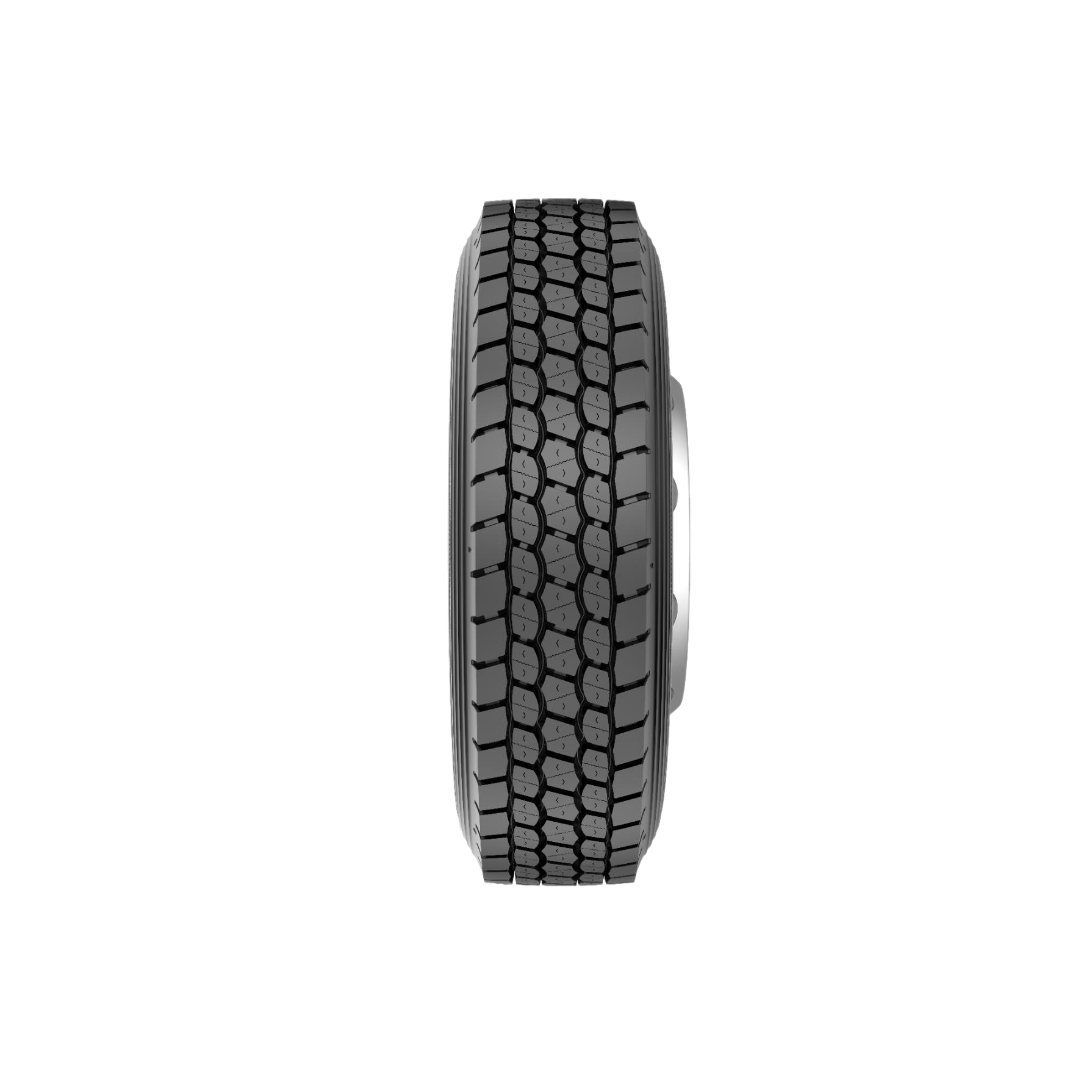

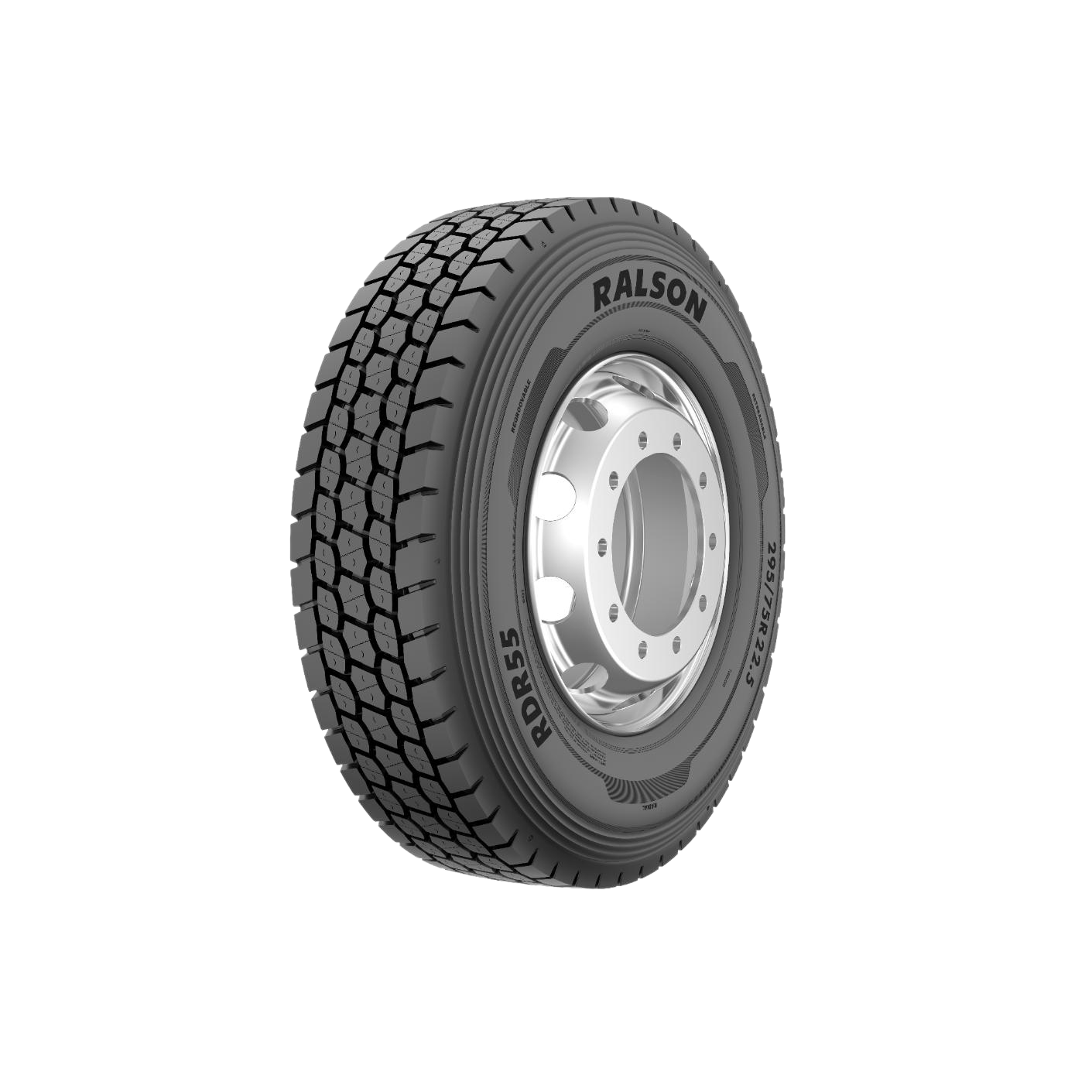

RDR55
Wider Open Shoulder
Resists tearing and dissipates heat for improved tread and casing life.
Balanced Rib Ratio
Enhances driver control and evenly distributes pressure across the tread.
Integrated tie-bar blocks
Improve traction and block stability.
Intricate sipe patterns
Increase block stiffness for stable braking and acceleration.
Optimised groove angles
Promote self-cleaning and reduce downtime.
Advance polymers and reinforcing agents
Are used to maximise the tire life adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/90R20 | 16H | 152/148J | 21.0 | 8.00 | 1065 | 288 | 3550@850 | 3150@850 | N | Y | N |
| 10.00R20 | 16H | 146/143K | 21.0 | 7.50 | 1065 | 288 | 3000@830 | 2725@830 | N | Y | N |
| 11R22.5 | 18J | 148/145L | 21.0 | 8.25 | 1065 | 290 | 3150@830 | 2900@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 14G | 144/141M | 26.5 | 9.00 | 1031 | 299 | 6175/110 | 5675/110 |
| 295/75R22.5 | 16H | 146/143M | 26.5 | 9.00 | 1031 | 299 | 6610/120 | 6005/120 |
| 285/75R24.5 | 14G | 144/141L | 26.5 | 8.25 | 1062 | 288 | 6175/110 | 5675/110 |
| 11R22.5 | 16H | 146/143M | 26.5 | 8.25 | 1065 | 288 | 6610/120 | 6005/120 |
| 11R24.5 | 16H | 149/146M | 26.5 | 8.25 | 1116 | 288 | 7160/120 | 6610/120 |
