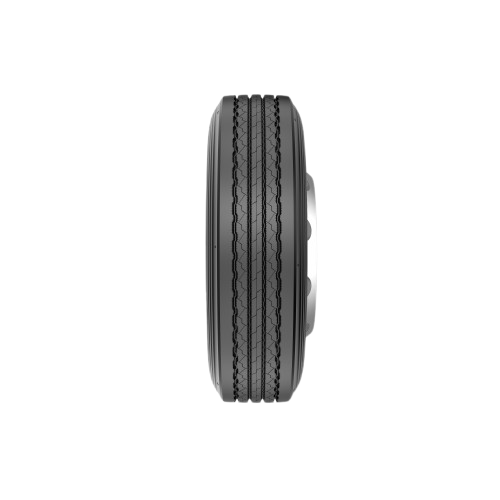

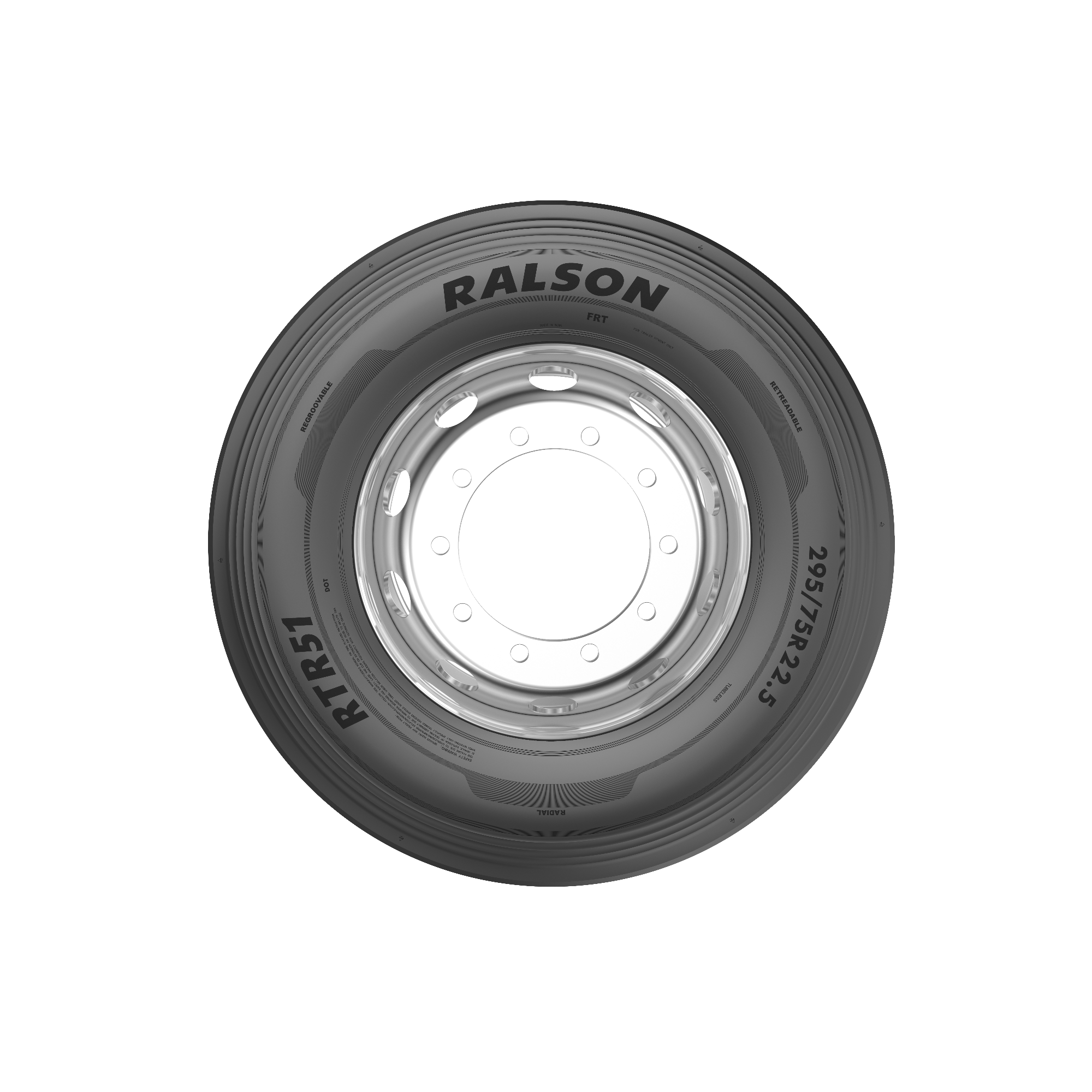

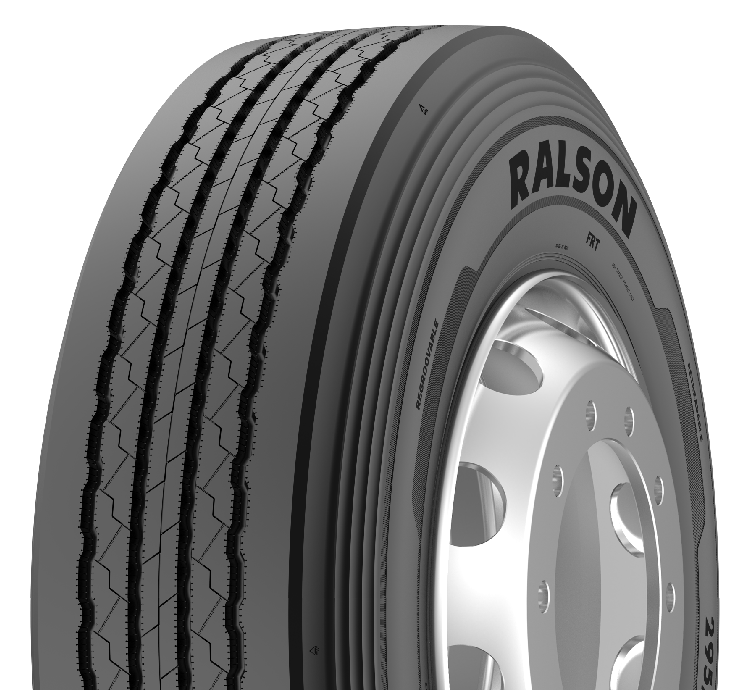

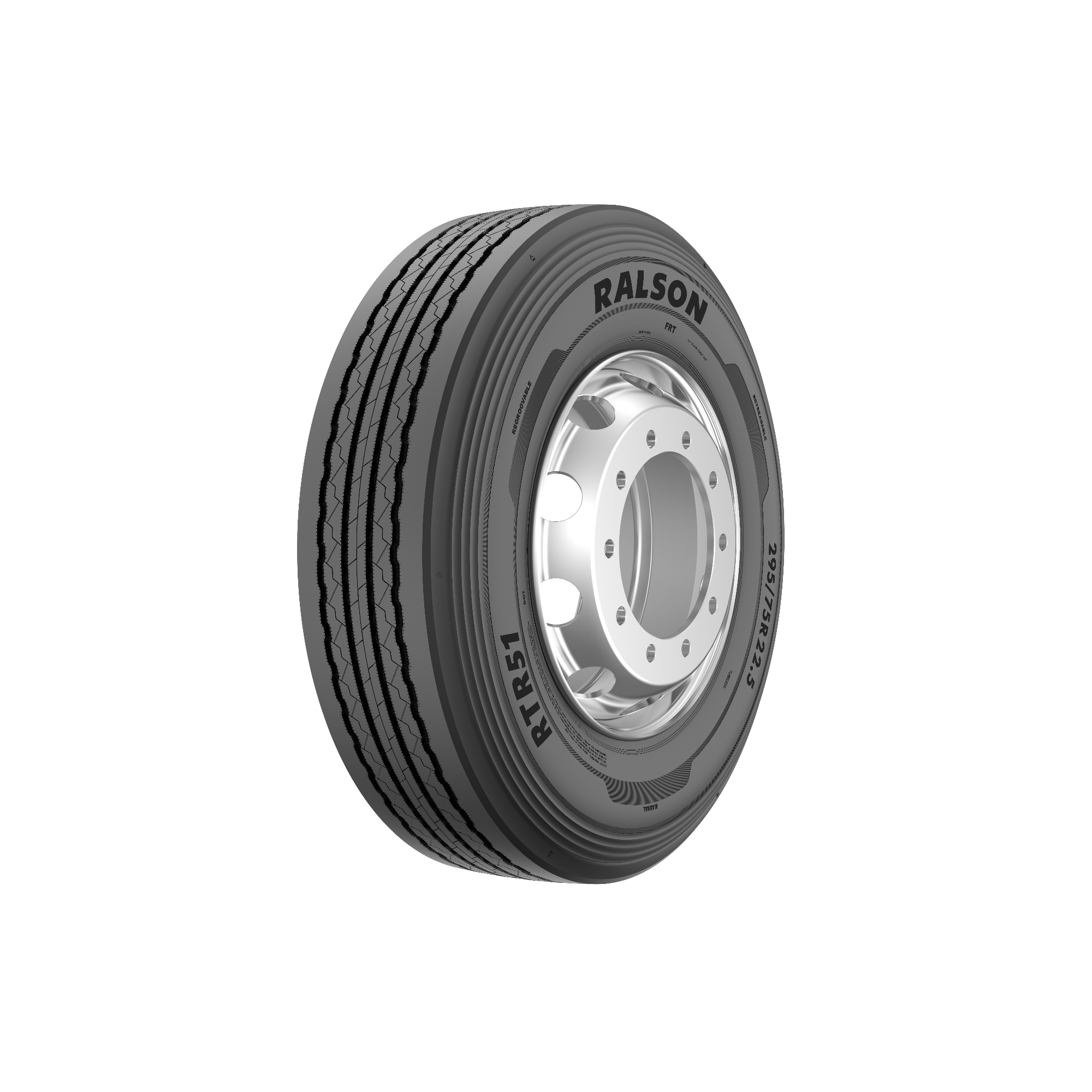

RTR51
Full-depth multidimensional sipes
Reduce irregular wear and rib tearing.
Chamfered solid shoulder
Counters sideways forces in high-scrub applications.
Corrugated Cooling Fins
Effectively dissipate heat for long casing life.
Optimised groove geometry
Enhances self-cleaning performance.
Wider shoulder Rib
Enhances lateral stability and durability.
Balanced rib ratio
Distributes pressure evenly for long tread life.
Advance polymers and reinforcing agents
Are used to maximise the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/90R20 | 16H | 152/148J | 9.6 | 8.00 | 1042 | 288 | 3550@850 | 3150@850 | N | Y | N |
| 10.00R20 | 16H | 146/143K | 9.6 | 7.50 | 1042 | 288 | 3000@830 | 2725@830 | N | Y | N |
| 11R22.5 | 18J | 148/145L | 9.6 | 8.25 | 1042 | 290 | 3150@830 | 2900@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 14G | 144/141M | 12.0 | 9.00 | 1008 | 299 | 6175/110 | 5675/110 |
| 295/75R22.5 | 16H | 146/143M | 12.0 | 9.00 | 1008 | 299 | 6610/120 | 6005/120 |
| 285/75R24.5 | 14G | 144/141L | 12.0 | 8.25 | 1039 | 288 | 6175/110 | 5675/110 |
| 11R22.5 | 14G | 144/142L | 12.0 | 8.25 | 1042 | 288 | 6175/105 | 5840/105 |
| 11R22.5 | 16H | 146/143M | 12.0 | 8.25 | 1042 | 288 | 6610/120 | 6005/120 |
| 11R24.5 | 14G | 146/143L | 12.0 | 8.25 | 1093 | 288 | 6610/105 | 6005/105 |
| 11R24.5 | 16H | 149/146M | 12.0 | 8.25 | 1093 | 288 | 7160/120 | 6610/120 |
