Stress Relief sipe
Ensures a smoother ride and enhanced braking power.
Wider shoulder rib
Enhances stability and resists shoulder tearing.
Integrated sipes
Enhance initial grip, all-weather traction, and thermal control.
Stone ejectors
Enable self-cleaning and easy stone removal to reduce downtime.

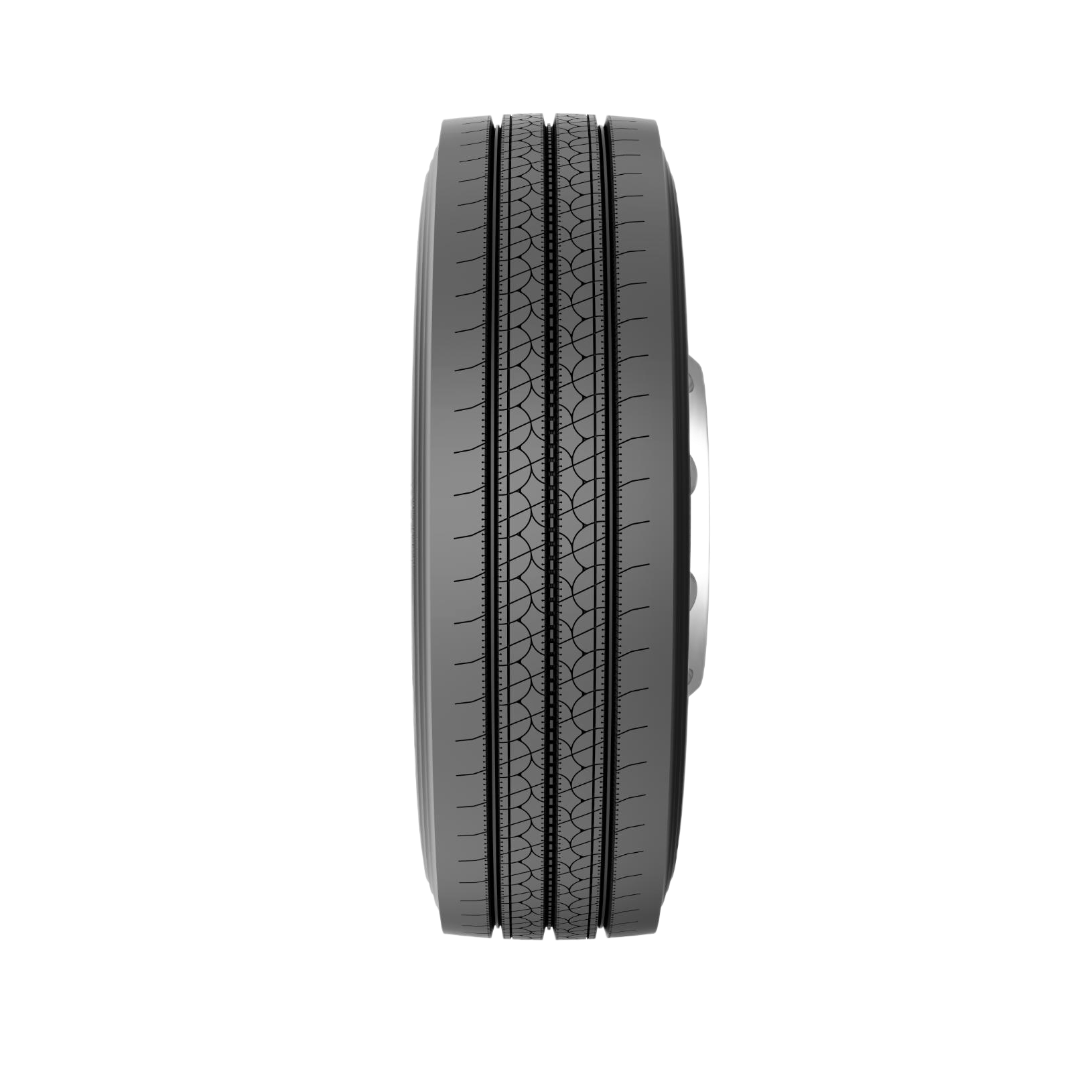

Balanced rib ratio
Ensures even pressure distribution, higher mileage, and excellent handling.
Advance polymers and reinforcing agents
Are used to maximise the tire life on every axle fitment and in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.00R20 | 16H | 142/140K | 16.0 | 7.00 | 1024 | 260 | 2650@830 | 2500@830 | N | - | - | - | Y | N |
| *12.00R20 | 18J | 154/151K | 17.1 | 8.50 | 1130 | 324 | 3750@830 | 3450@830 | N | - | - | - | Y | N |
| 275/80R22.5 | 16H | 149/146M | 16.0 | 8.25 | 1023 | 284 | 3250@830 | 3000@830 | Y | D | B | 72dB | Y | Y |
| 295/60R22.5 | 18J | 150/147K | 13.5 | 9.00 | 921 | 292 | 3350@900 | 3075@900 | Y | D | B | 72dB | Y | Y |
| 295/80R22.5 | 18J | 154/149M | 16.5 | 9.00 | 1054 | 311 | 3750@850 | 3250@850 | Y | D | B | 72dB | Y | Y |
| 315/60R22.5 | 20L | 154/148L | 13.5 | 9.75 | 953 | 312 | 3750@900 | 3150@900 | Y | D | B | 72dB | Y | Y |
| 315/70R22.5 | 18J | 156/150L | 15.5 | 9.00 | 1020 | 318 | 4000@900 | 3350@900 | Y | D | B | 72dB | Y | Y |
| 315/80R22.5 | 18J | 156/150L | 17.5 | 9.00 | 1088 | 323 | 4000@830 | 3350@830 | Y | D | B | 72dB | Y | Y |
| 315/80R22.5 | 20L | 161/157K | 17.5 | 9.00 | 1088 | 323 | 4625@900 | 4125@900 | N | - | - | - | Y | N |
| 385/55R22.5 | 22M | 164K | 15.5 | 11.75 | 996 | 385 | 5000@900 | - | Y | D | B | 72dB | Y | Y |
| 385/65R22.5 | 20L | 164K | 15.5 | 11.75 | 1072 | 391 | 5000@900 | - | Y | D | B | 72dB | Y | Y |
| 13R22.5 | 18J | 156/150K | 17.1 | 9.75 | 1130 | 324 | 4000@860 | 3350@860 | Y | D | B | 72dB | Y | Y |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 275/70R22.5 | 18J | 152/149L | 20.2 | 8.25 | 960 | 288 | 7165/130 | 6615/130 |
| 295/60R22.5 | 18J | 150/147K | 17.1 | 9.00 | 920 | 291 | 7385/130 | 6780/130 |
| 315/80R22.5 | 18J | 156/150L | 22.0 | 9.00 | 1086 | 318 | 8820/123 | 7390/123 |
| 385/65R22.5 | 20L | 164K | 18.9 | 11.75 | 1075 | 388 | 11000/130 | - |
