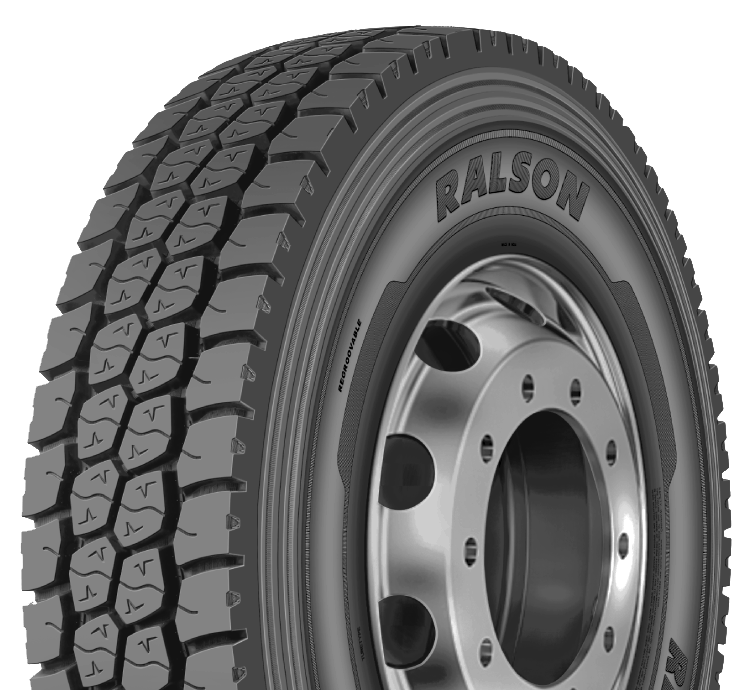

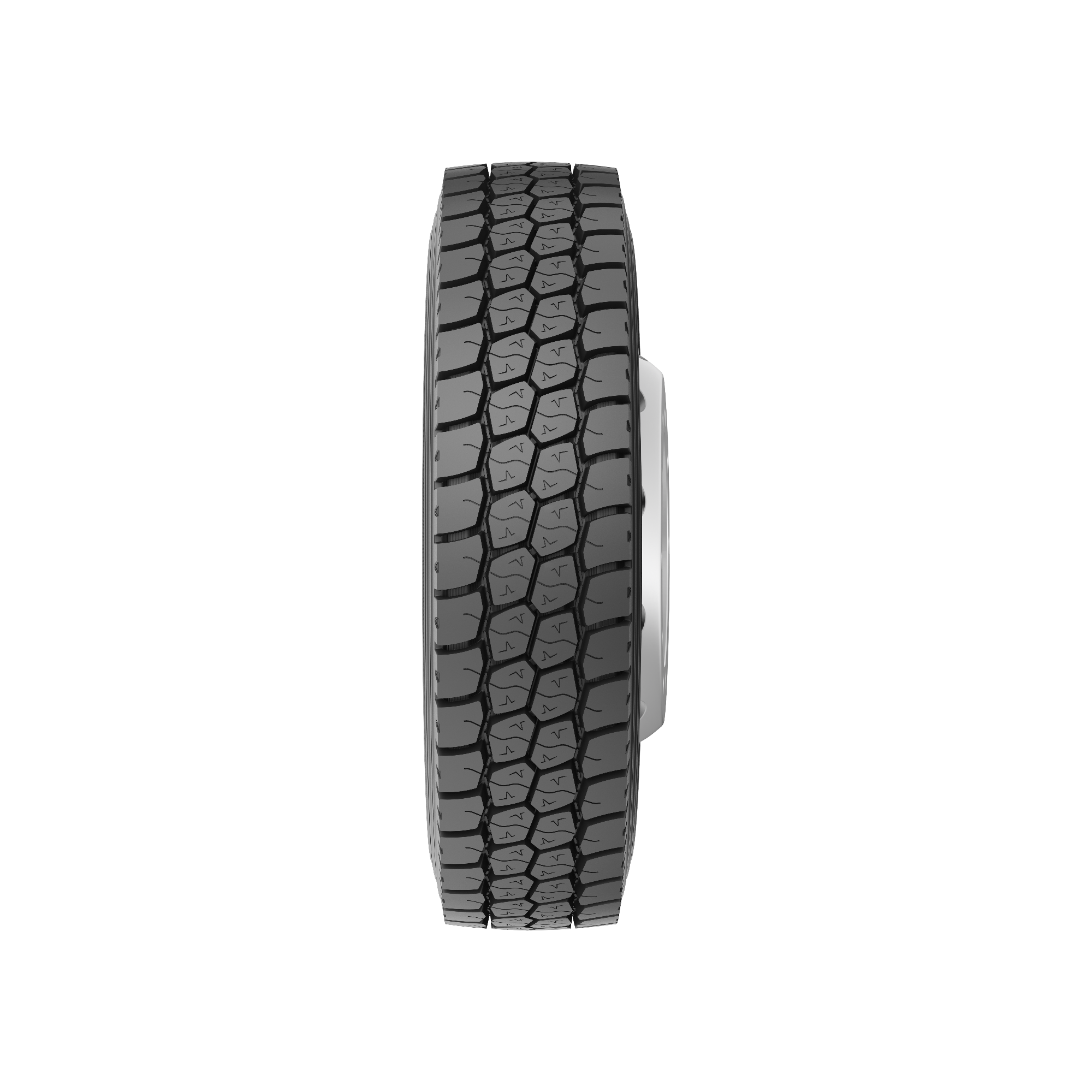

Three-groove block
Layout improves contact patch strength and load distribution.
Wider shoulder block design
Enhances lateral stability and durability.
Wider Lateral Grooves
Adds biting edges and traction on uneven surfaces.
Tread depth indicator
Allows quick visual wear checks.
2D sipe design
Ensures initial traction supported by tie-bar stability.
Stone ejectors
Enable self-cleaning and reduce downtime.
Advance polymers and reinforcing agents
Are used to maximise the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/90R20 | 16H | 152/148J | 20.8 | 8.00 | 1066 | 290 | 3550@850 | 3150@850 | N | Y | N |
| 10.00R20 | 16H | 146/143K | 20.8 | 7.50 | 1066 | 285 | 3000@830 | 2725@830 | N | Y | N |
| 11.00R20 | 16H | 150/147K | 20.0 | 8.00 | 1090 | 297 | 3350@830 | 3075@830 | N | Y | N |
