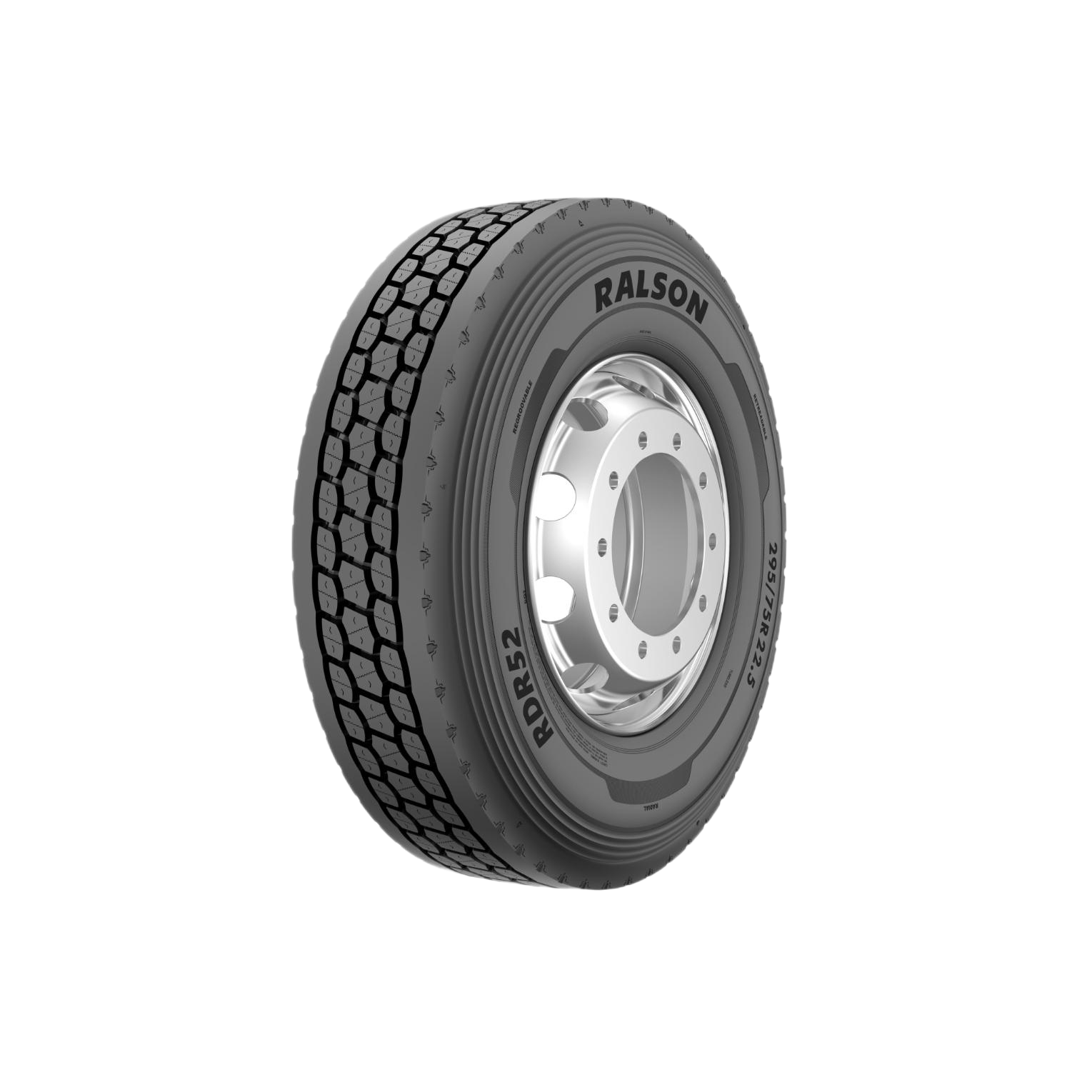

RDR52
Tie-bar blocks
Enhance traction, improve rigidity, and reduce rolling resistance.
Closed shoulder
Design manages load, torque, and stability.
Integrated Blocks
Enhance block rigidity for dependable traction and uniform wear.
Optimized Groove Angle
Promote self-cleaning for long tread life and less downtime.
Advance polymers and reinforcing agents
Are used to maximize the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/90R20 | 16H | 152/148J | 22.2 | 8.00 | 1068 | 288 | 3550@850 | 3150@850 | N | Y | N |
| 10.00R20 | 16H | 146/143K | 22.2 | 7.50 | 1068 | 288 | 3000@830 | 2725@830 | N | Y | N |
| 11R22.5 | 18J | 148/145L | 22.2 | 8.25 | 1068 | 291 | 3150@830 | 2900@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 14G | 144/141M | 28.0 | 9.00 | 1034 | 299 | 6175/110 | 5675/110 |
| 295/75R22.5 | 16H | 146/143M | 28.0 | 9.00 | 1034 | 299 | 6610/120 | 6005/120 |
| 285/75R24.5 | 14G | 144/141L | 28.0 | 8.25 | 1065 | 288 | 6175/110 | 5675/110 |
| 11R22.5 | 16H | 146/143M | 28.0 | 8.25 | 1068 | 288 | 6610/120 | 6005/120 |
| 11R24.5 | 16H | 149/146M | 28.0 | 8.25 | 1119 | 288 | 7160/120 | 6610/120 |
