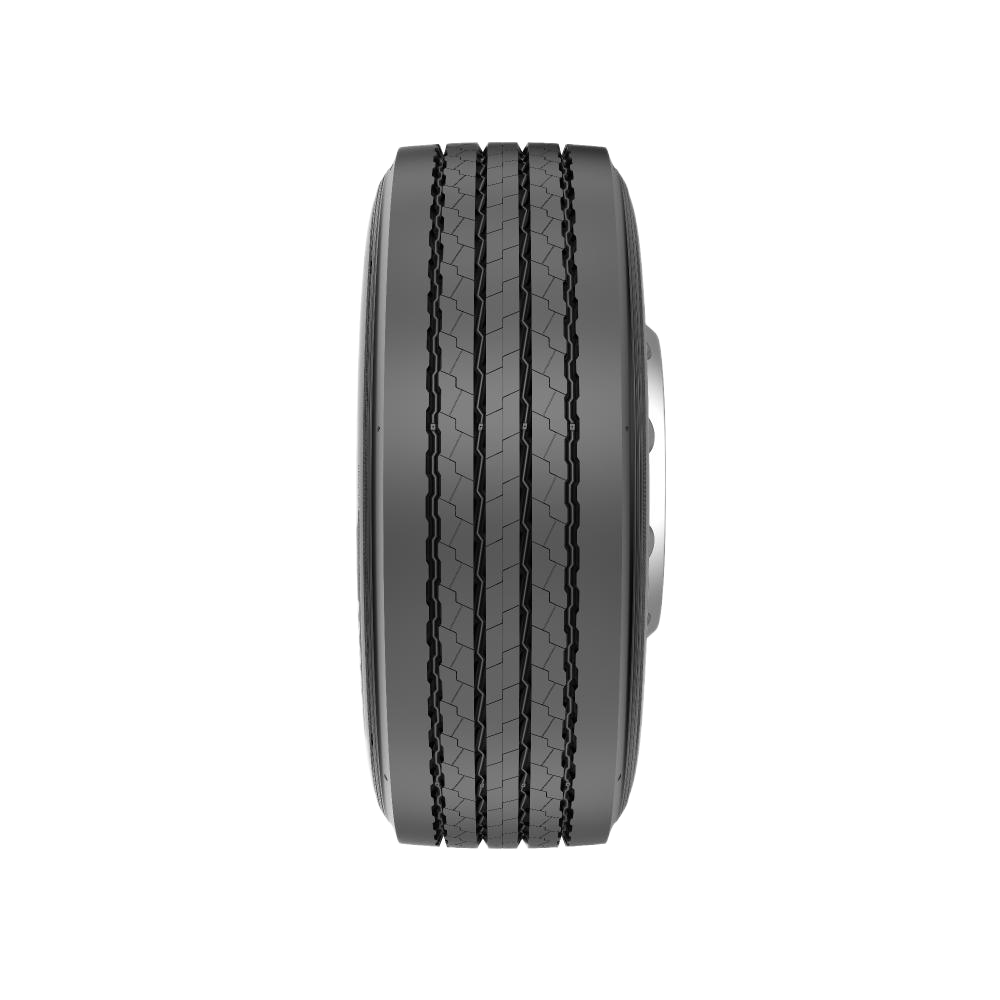

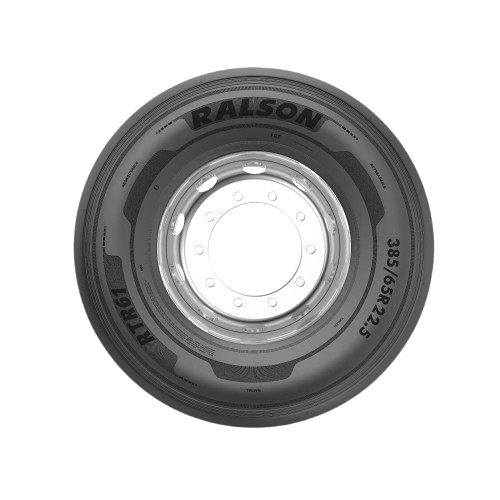

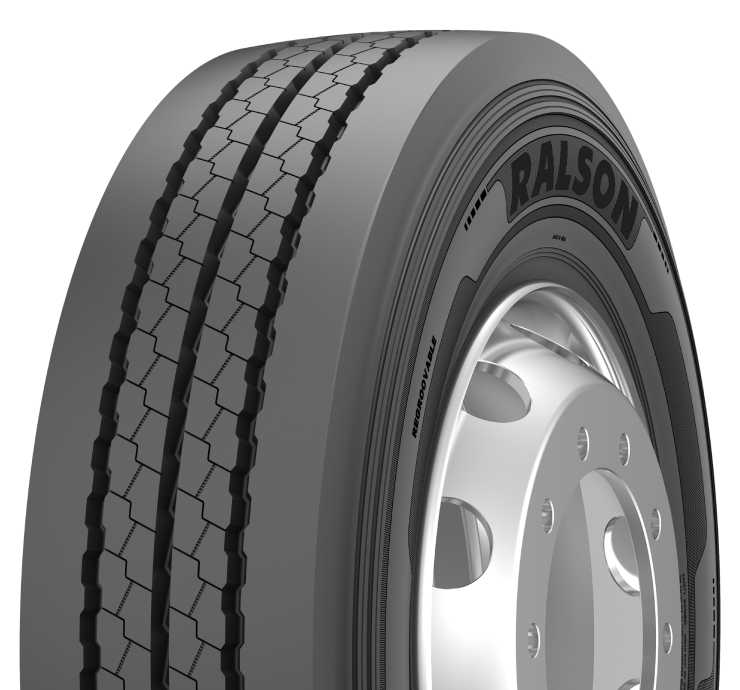

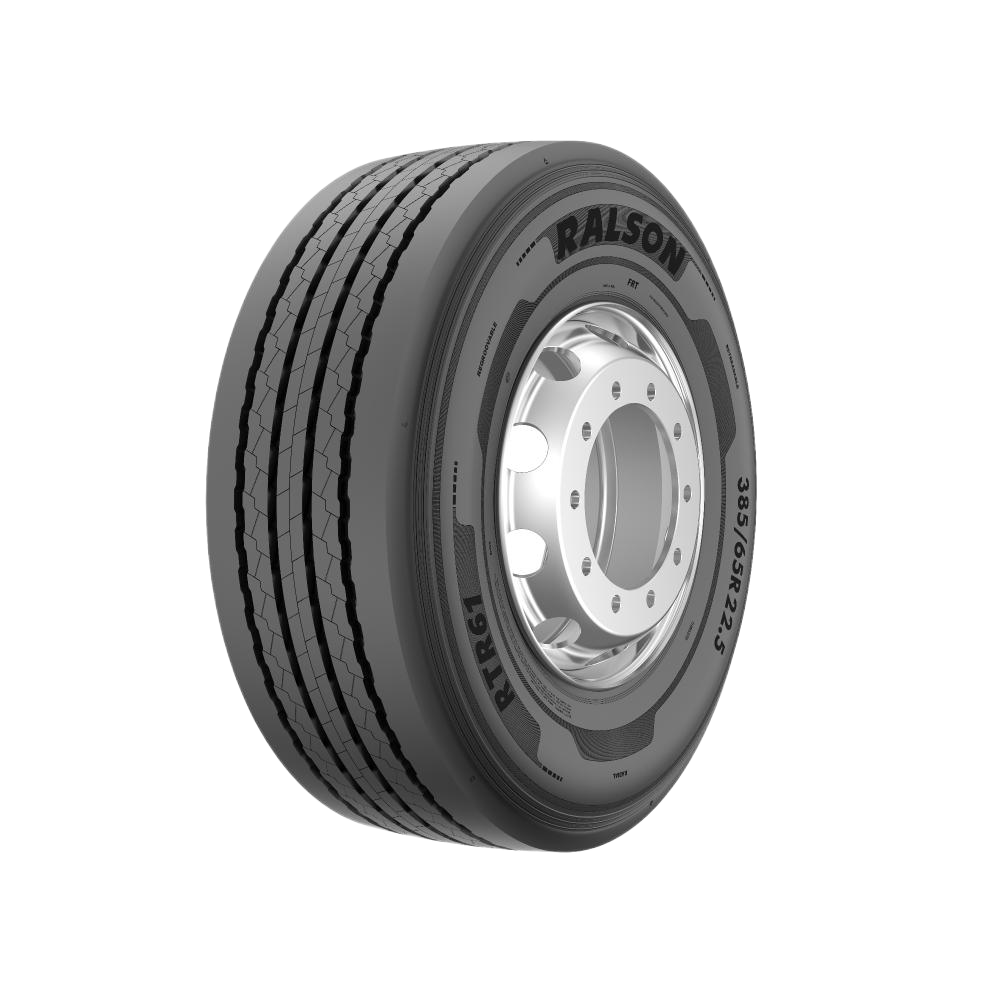

RTR61
Full-depth multidimensional sipes
Reduce irregular wear and rib tearing.
Corrugated cooling fins
Increase surface area for improved heat dissipation and casing life.
Wide shoulder rib
Improves lateral stability during turns and enhances footprint.
Optimized groove angles
Promote self-cleaning and reduce stone retention.
Balanced Rib Ratio
Provides higher mileage and even wear.
Advance polymers and reinforcing agents
Are used to maximise the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| *205/65R17.5 | 18J | 132/130J | 11.5 | 6.00 | 712 | 205 | 2000@850 | 1900@850 | Y | - | - | - | Y | Y |
| 215/75R17.5 | 16H | 135/133M | 10.6 | 6.00 | 765 | 212 | 2180@850 | 2060@850 | Y | C | B | 72dB | Y | Y |
| 235/75R17.5 | 18J | 132/130M | 11.0 | 6.75 | 794 | 235 | 2000@875 | 1900@875 | Y | C | B | 72dB | Y | Y |
| 235/75R17.5 | 18J | 143/141J | 11.0 | 6.75 | 794 | 235 | 2725@875 | 2575@875 | Y | C | B | 72dB | Y | Y |
| 245/70R17.5 | 16H | 143/141M | 11.0 | 7.50 | 791 | 244 | 2725@875 | 2575@875 | Y | C | B | 72dB | Y | Y |
| 245/70R17.5 | 18J | 143/141J | 11.0 | 7.50 | 791 | 244 | 2725@875 | 2575@875 | Y | C | B | 72dB | Y | Y |
| 265/70R19.5 | 18J | 143/141J | 11.5 | 7.50 | 867 | 265 | 2725@850 | 2575@850 | Y | C | B | 72dB | Y | Y |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 215/75R17.5 | 16H | 135/133M | 13.4 | 6.00 | 765 | 212 | 4805/123 | 4540/123 |
| 235/75R17.5 | 18J | 143/141J | 13.9 | 6.75 | 793 | 237 | 6005/127 | 5675/127 |
| 245/70R17.5 | 18J | 143/141J | 13.9 | 7.50 | 785 | 247 | 6005/127 | 5675/127 |
