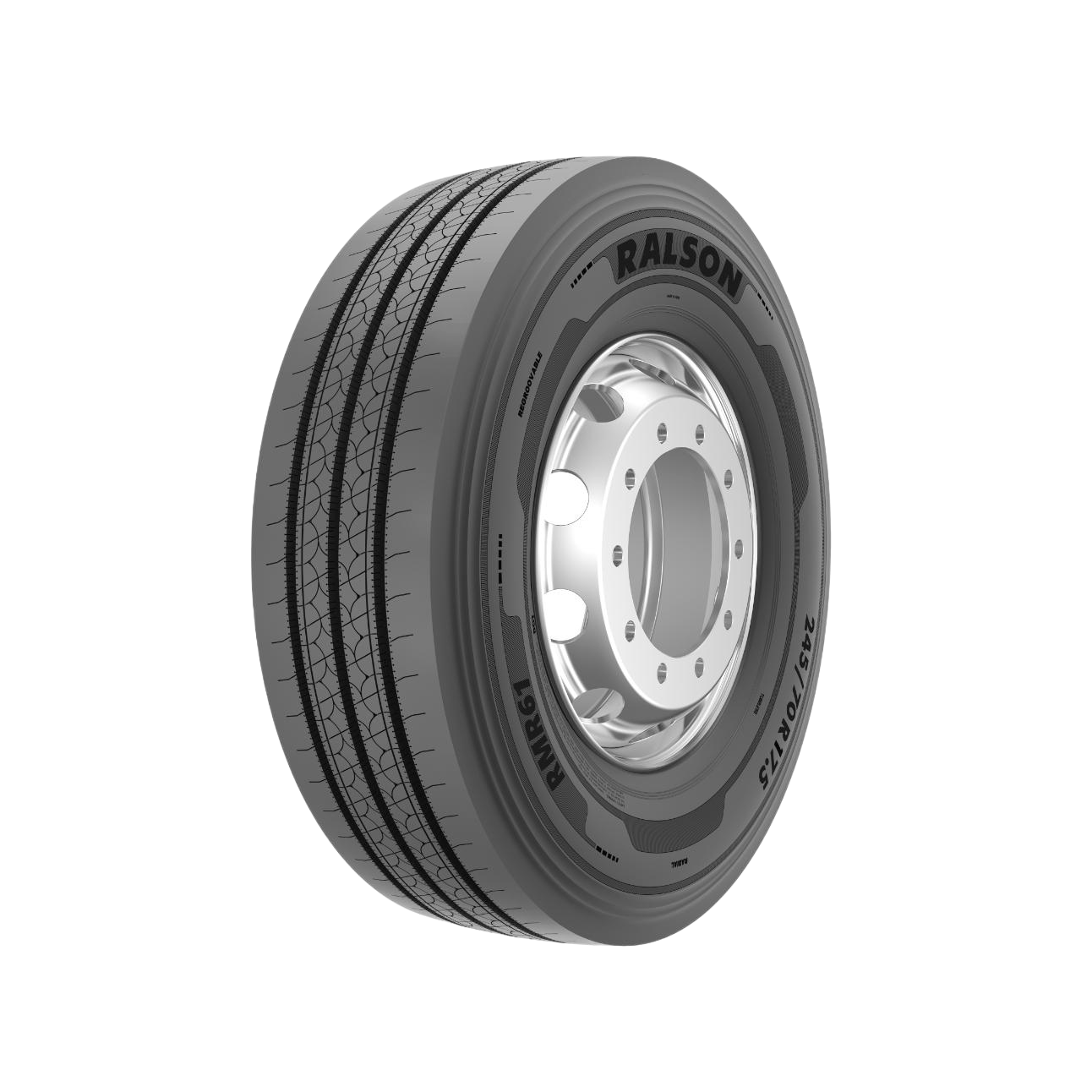

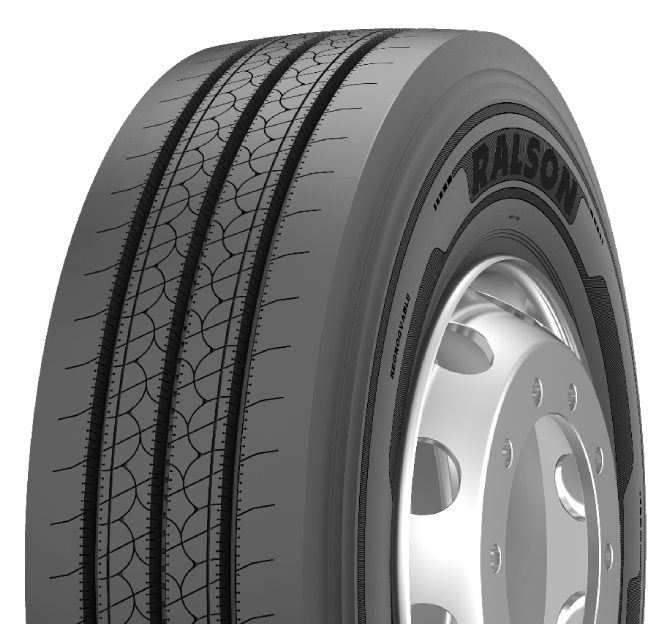

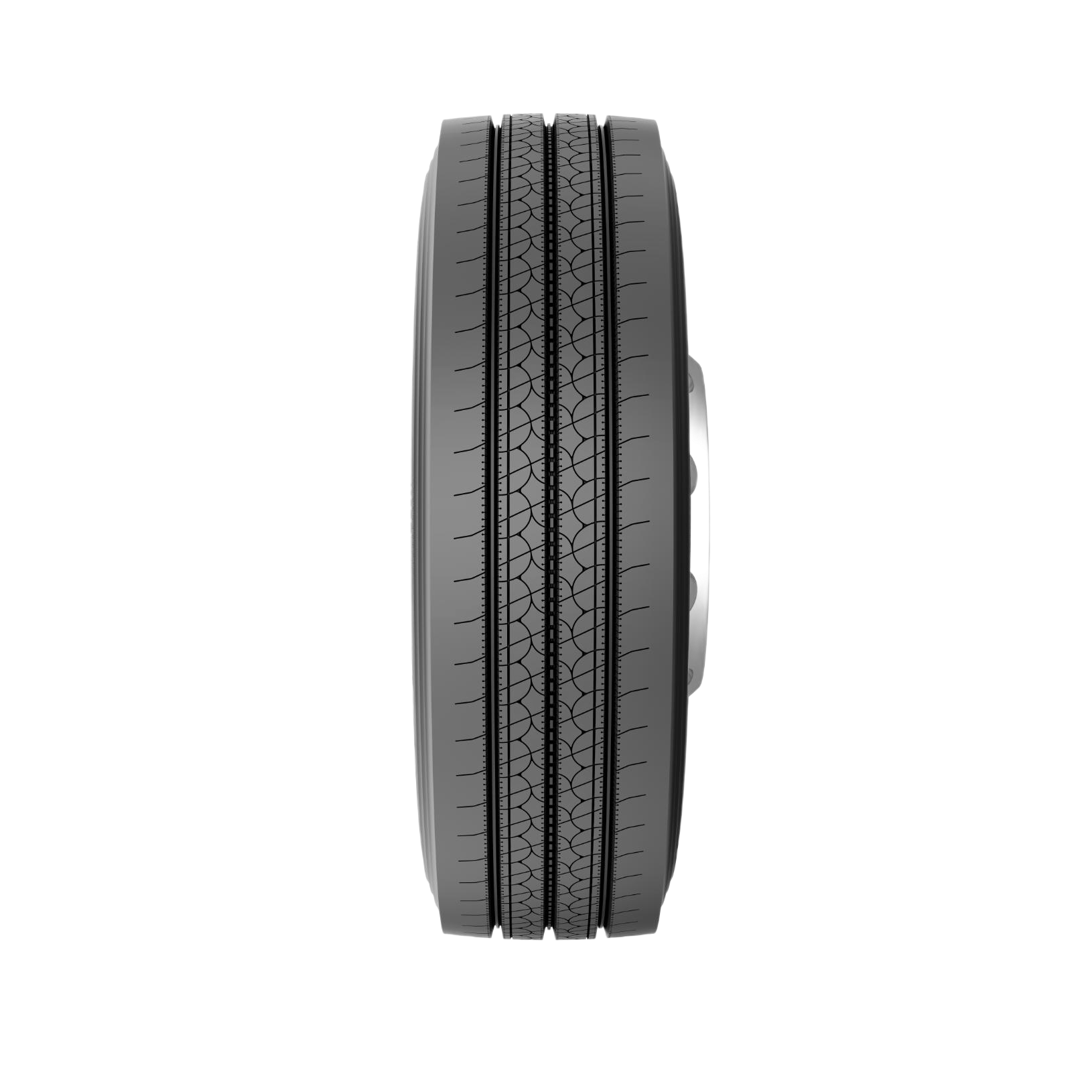

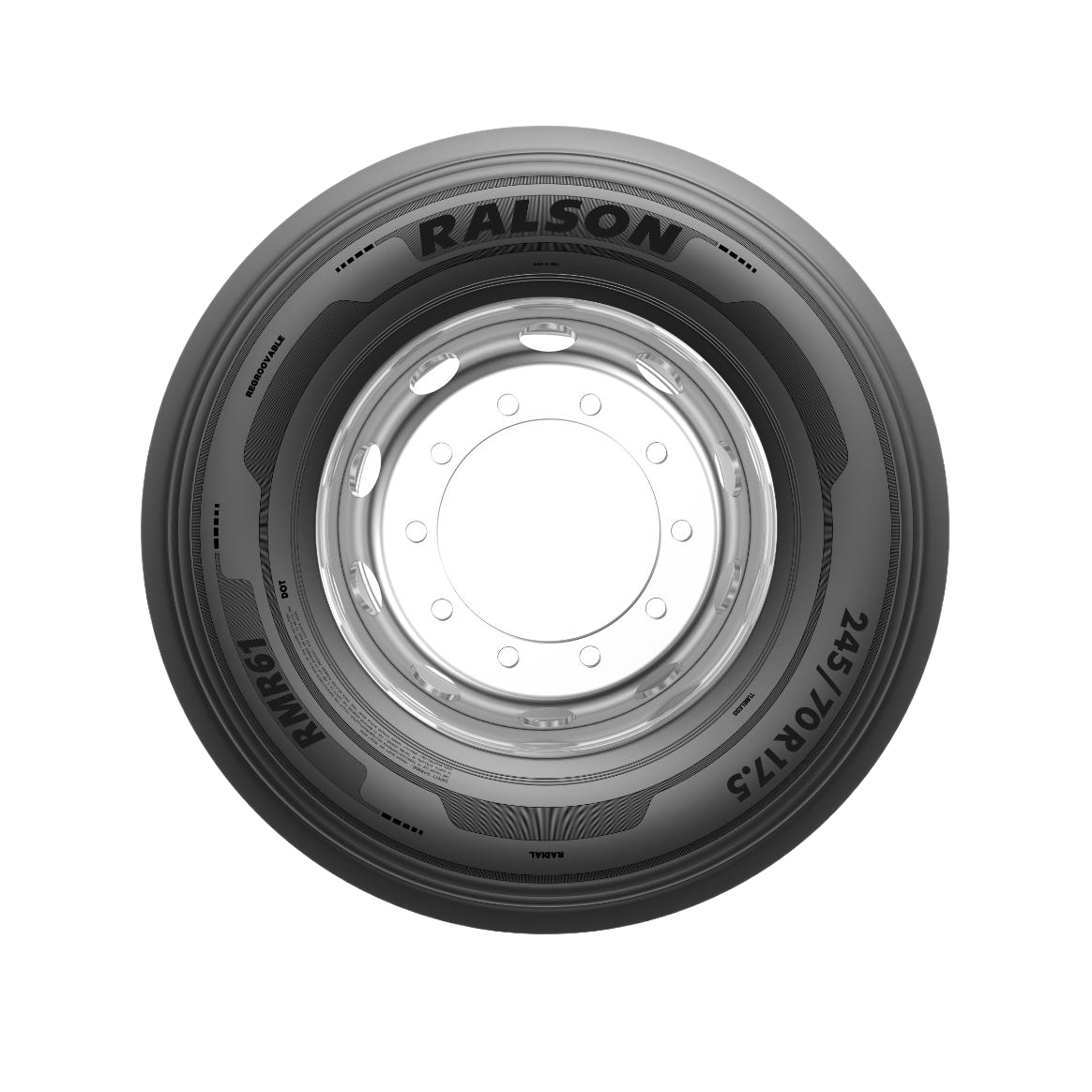

RMR61
Stress-relief sipes
Absorb impact for smoother ride and improved braking.
Wide shoulder rib
Minimizes side forces to enhance durability and tread life.
Integrated Functional and optical sipes
Improve grip and promote even wear.
Stone ejectors
Enable self-cleaning and easy stone removal to reduce downtime.
Balanced rib
Design promotes stable handling and consistent wear.
Advance polymers and reinforcing agents
Are used to maximise the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| *205/75R17.5 | 16H | 124/122M | 12.5 | 6.00 | 754 | 205 | 1600@720 | 1500@720 | Y | - | - | - | Y | Y |
| 215/75R17.5 | 16H | 128/126M | 11.5 | 6.00 | 767 | 212 | 1800@760 | 1700@760 | Y | D | B | 72dB | Y | Y |
| 235/75R17.5 | 18J | 132/130M | 12.0 | 6.75 | 795 | 237 | 2000@775 | 1900@775 | Y | D | B | 72dB | Y | Y |
| 245/70R17.5 | 18J | 136/134M | 12.0 | 7.50 | 787 | 248 | 2240@775 | 2120@775 | Y | D | B | 72dB | Y | Y |
| 265/70R19.5 | 16H | 140/138M | 13.0 | 7.50 | 870 | 265 | 2500@800 | 2360@800 | Y | D | B | 72dB | Y | Y |
| 285/70R19.5 | 16H | 146/145L | 13.5 | 8.25 | 898 | 285 | 3000@850 | 2900@850 | Y | D | B | 72dB | Y | Y |
| 285/70R19.5 | 18J | 146/144M | 13.5 | 8.25 | 898 | 285 | 3000@850 | 2800@850 | Y | D | B | 72dB | Y | Y |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 215/75R17.5 | 16H | 128/126M | 14.5 | 6.00 | 767 | 212 | 3970/110 | 3750/110 |
| 235/75R17.5 | 16H | 132/130M | 15.1 | 6.75 | 795 | 237 | 4410/112 | 4190/112 |
| 245/70R17.5 | 16H | 134/132M | 15.1 | 7.50 | 787 | 248 | 4675/112 | 4410/112 |
