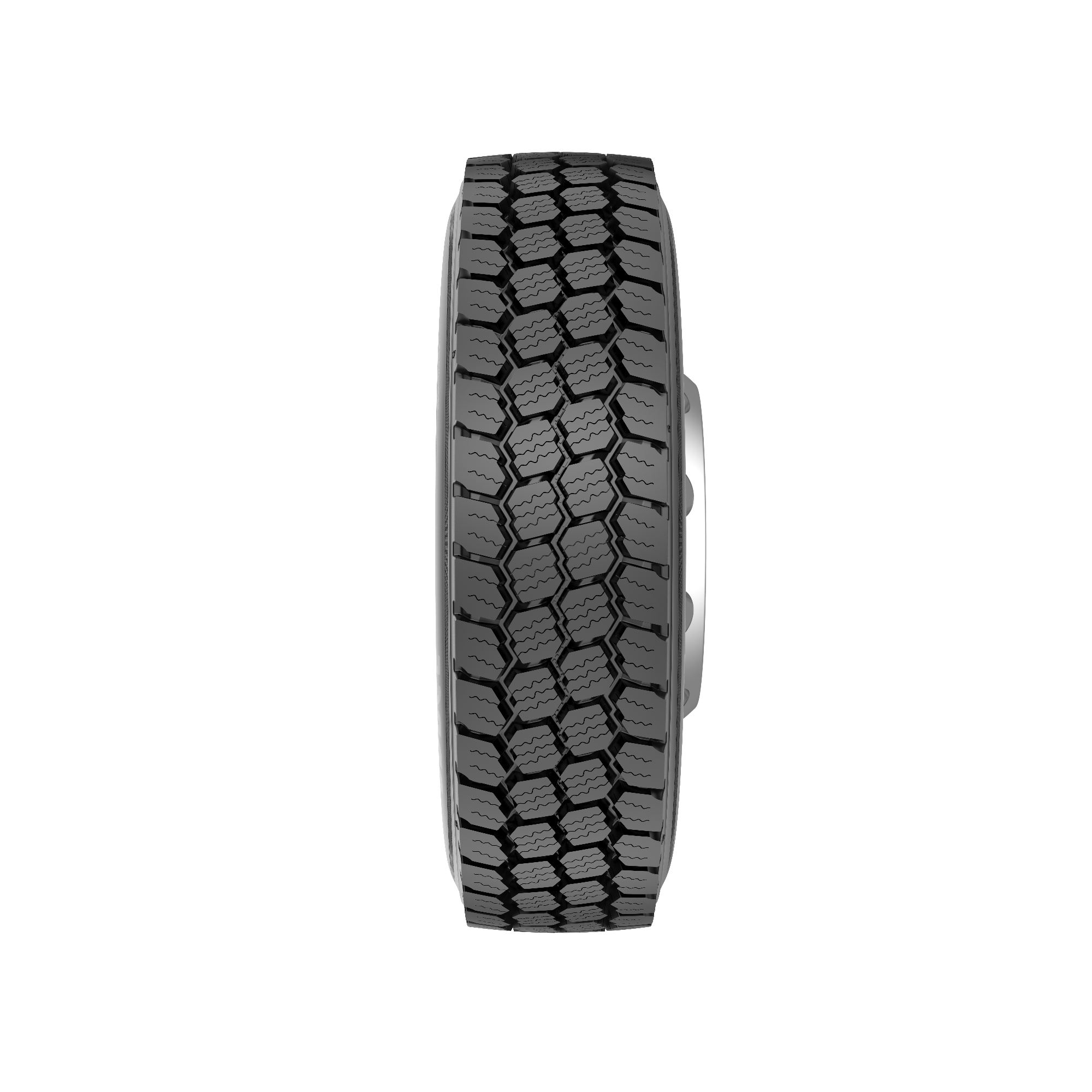

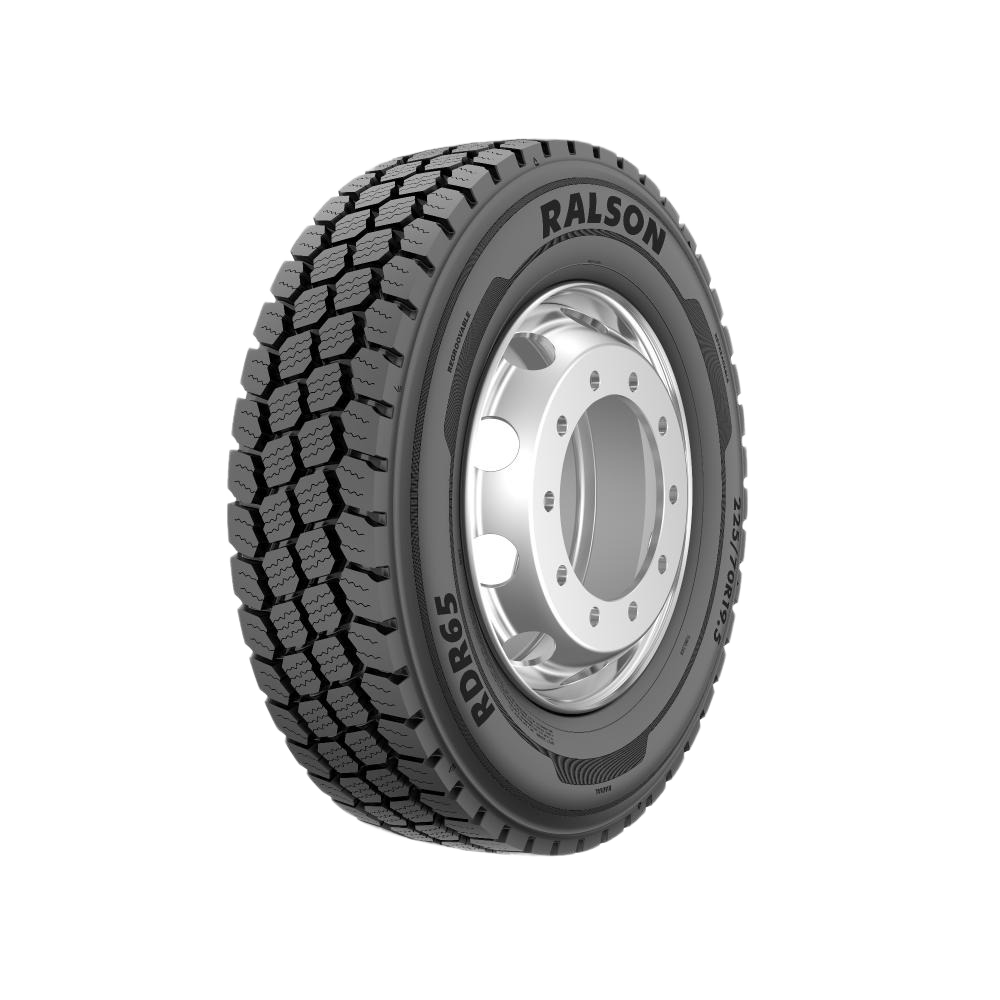

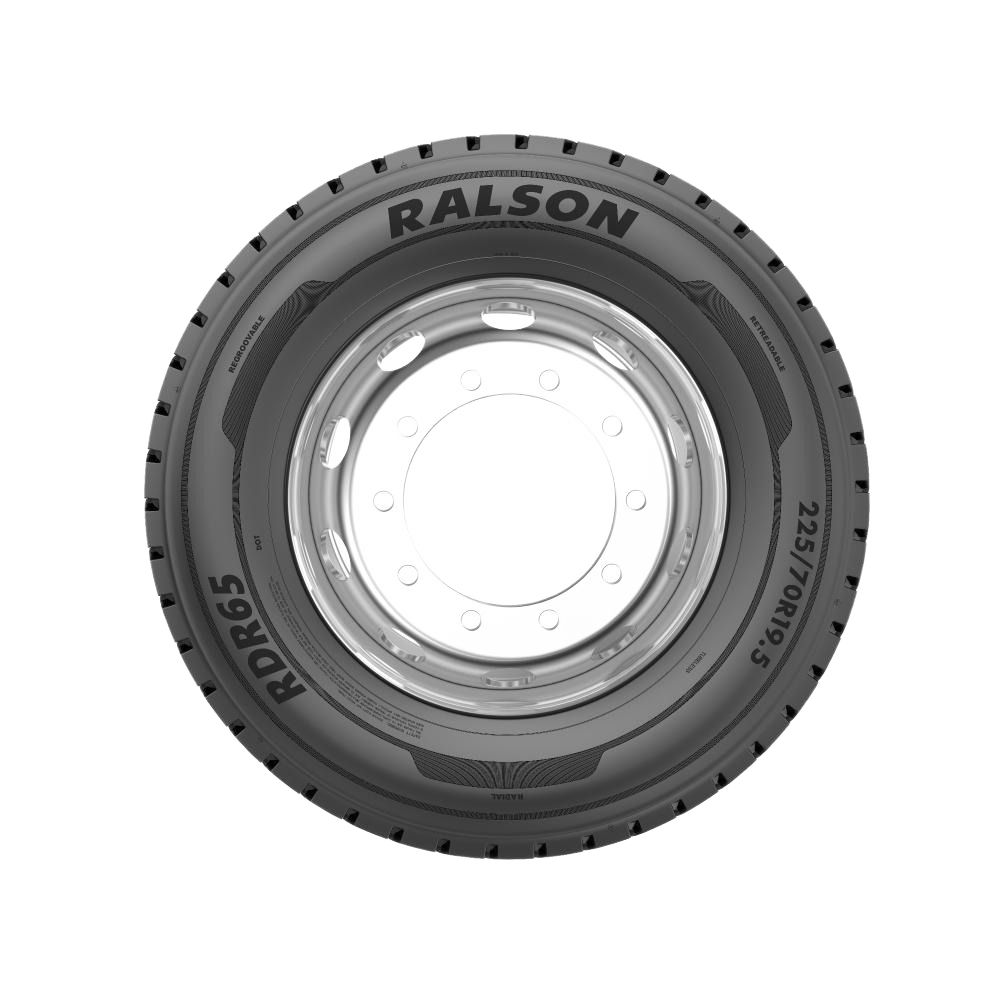

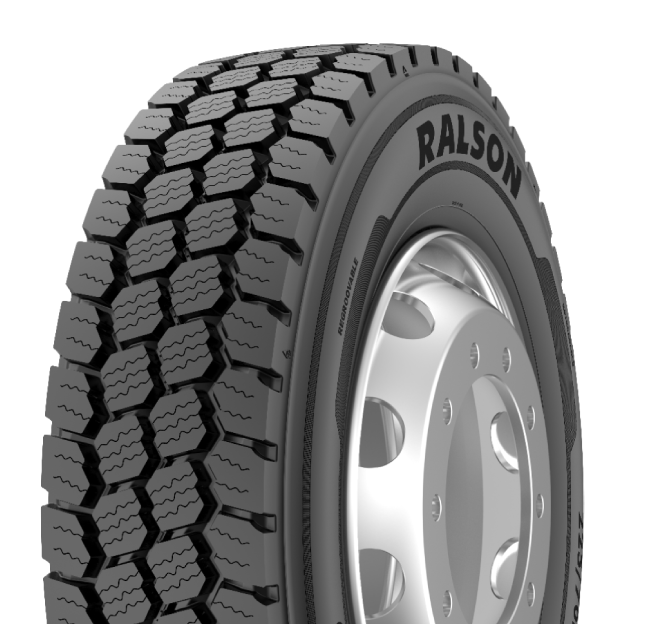

RDR65
Integrated sipes
Improve all-weather traction and promote even wear.
Open shoulder design
Minimizes turning side forces and improves tread durability.
Optimized Groove Angle
Enhances self-cleaning for long tread life and less downtime.
Integrated stone ejectors
Minimise stone drilling and tread damage.
Balanced rib ratio
Distributes pressure evenly for excellent handling and driving comfort.
Tie-bar blocks
Enhance rigidity for uniform wear and longer tread life.
Advance polymers and reinforcing agents
Are used to maximize the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 225/70R19.5 | 14G | 128/126N | 15.5 | 6.75 | 818 | 230 | 1800@760 | 1700@760 | N | Y | N |
| 245/70R19.5 | 16H | 136/134M | 16.1 | 7.50 | 843 | 253 | 2240@830 | 2120@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 225/70R19.5 | 14G | 128/126N | 19.5 | 6.75 | 818 | 223 | 3970/110 | 3750/110 |
| 245/70R19.5 | 16H | 136/134M | 20.3 | 7.50 | 843 | 247 | 4940/120 | 4675/120 |
