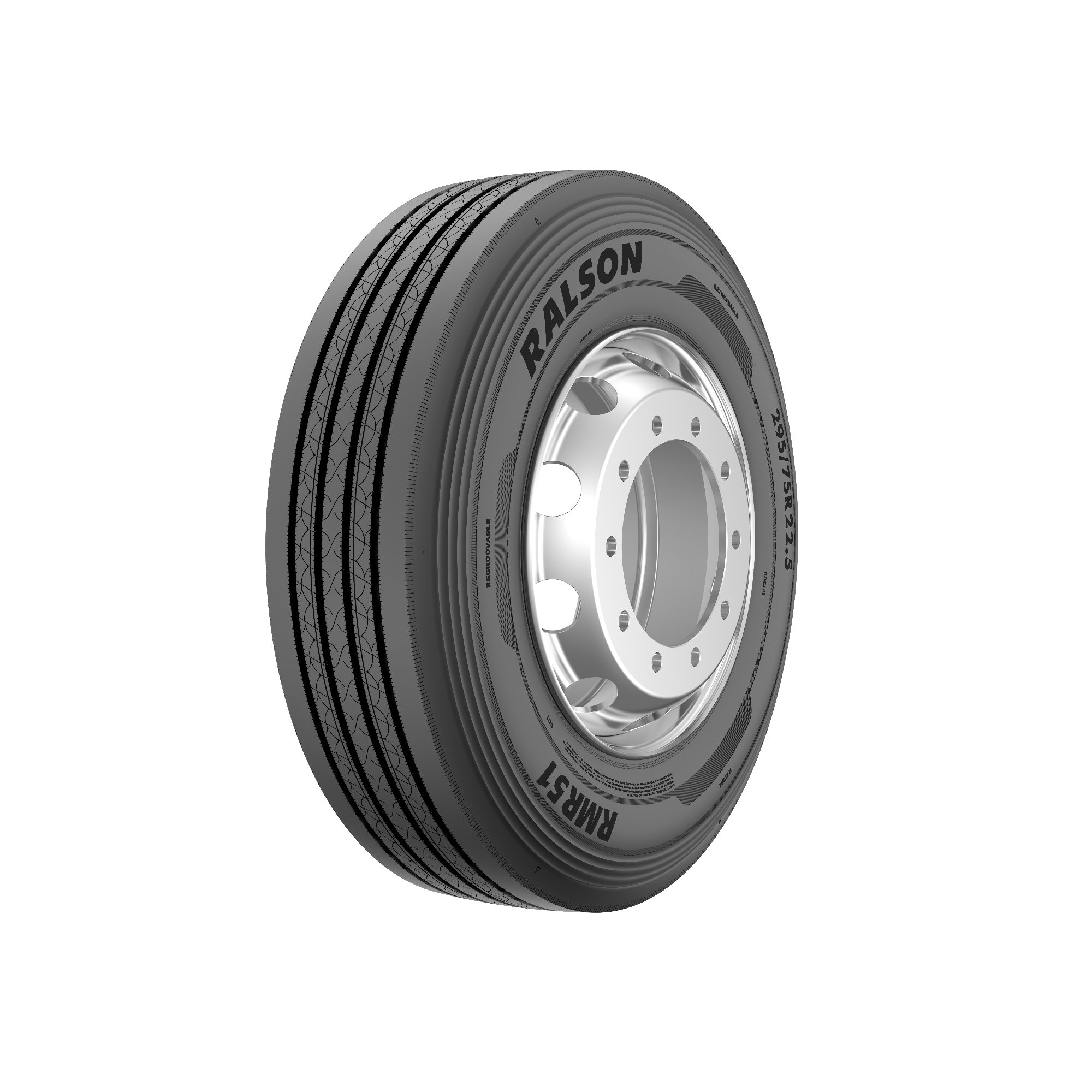

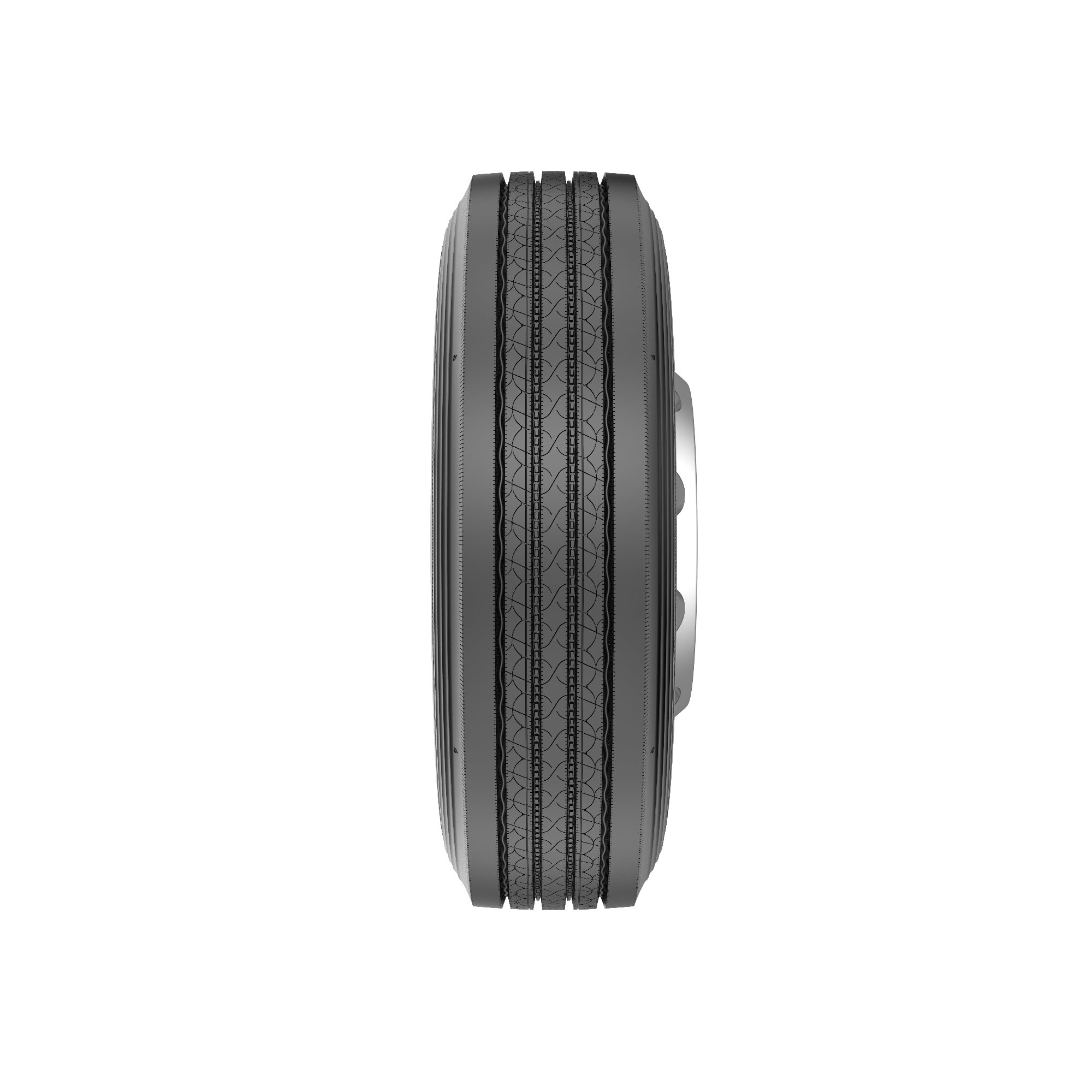

RMR51
Integrated sipes
Deliver strong initial traction and all-weather grip while running cooler.
Wider Shoulder Rib
Optimises side forces and improves steering stability.
Integrated stress-relief design
Minimizes strain under load.
Optimized sinusoidal shoulder grooves
Improve braking, stability, and stone ejection.
Micro sipe geometry
Increases surface edge density for better control.
Balanced rib ratio
Ensures even pressure distribution and stable handling.
Advance polymers and reinforcing agents
Are used to maximise the tire life on every axle fitment and in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| *9.5R17.5 | 18J | 129/127M | 14.5 | 6.75 | 842 | 240 | 1850@760 | 1750@760 | N | Y | N |
| 225/70R19.5 | 14G | 128/126M | 13.0 | 6.75 | 813 | 230 | 1800@760 | 1700@760 | N | Y | N |
| 245/70R19.5 | 16H | 136/134M | 14.5 | 7.50 | 840 | 253 | 2240@830 | 2120@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 225/70R19.5 | 14G | 128/126M | 16.4 | 6.75 | 813 | 223 | 3970/110 | 3750/110 |
| 245/70R19.5 | 16H | 136/134M | 18.3 | 7.50 | 840 | 249 | 4940/120 | 4675/120 |
