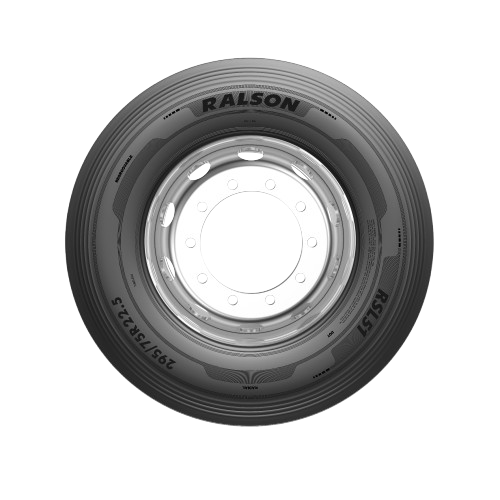

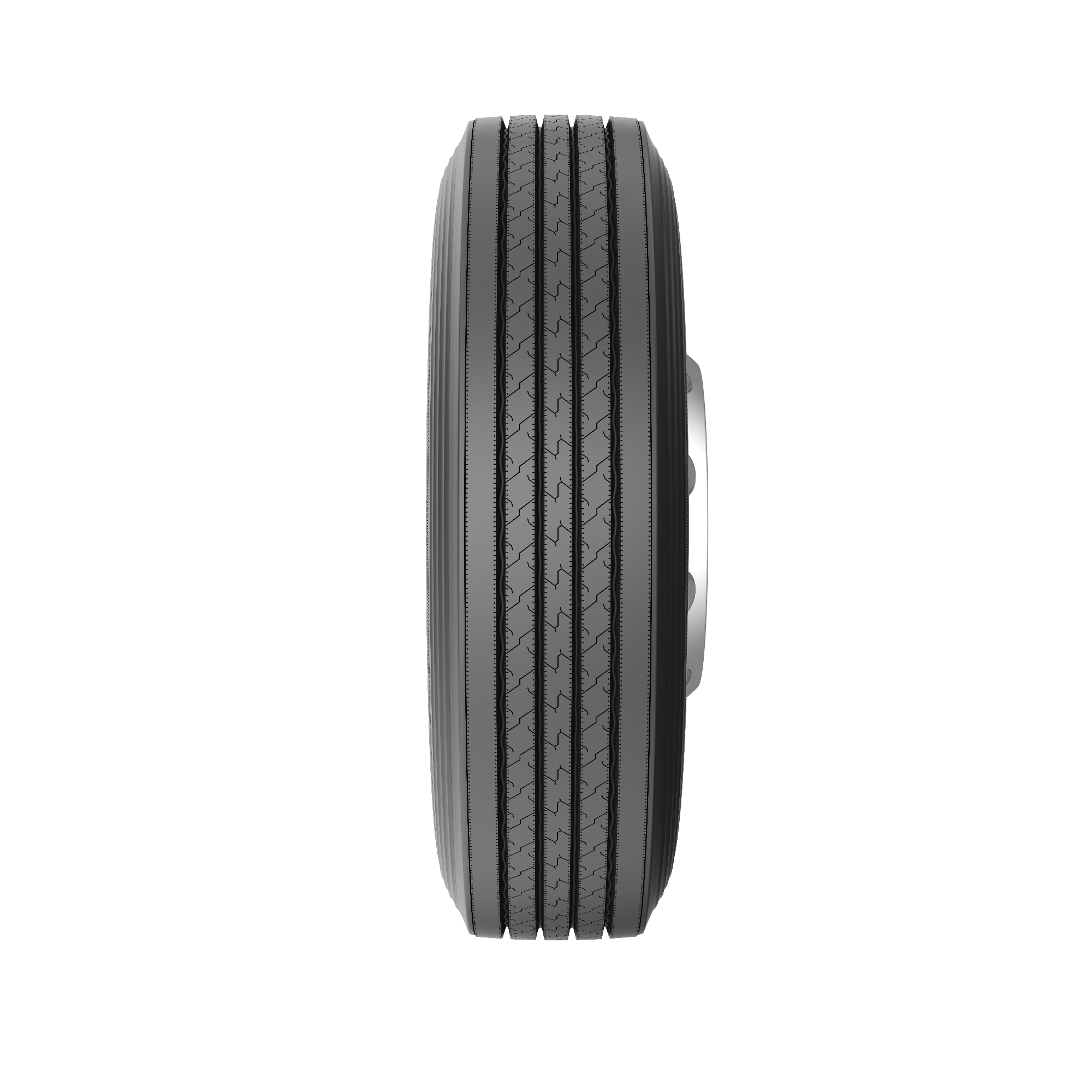

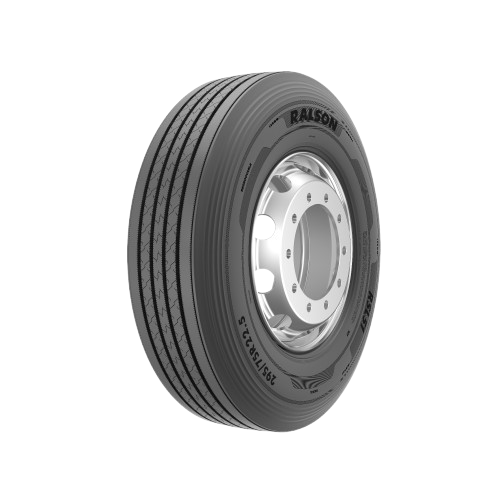

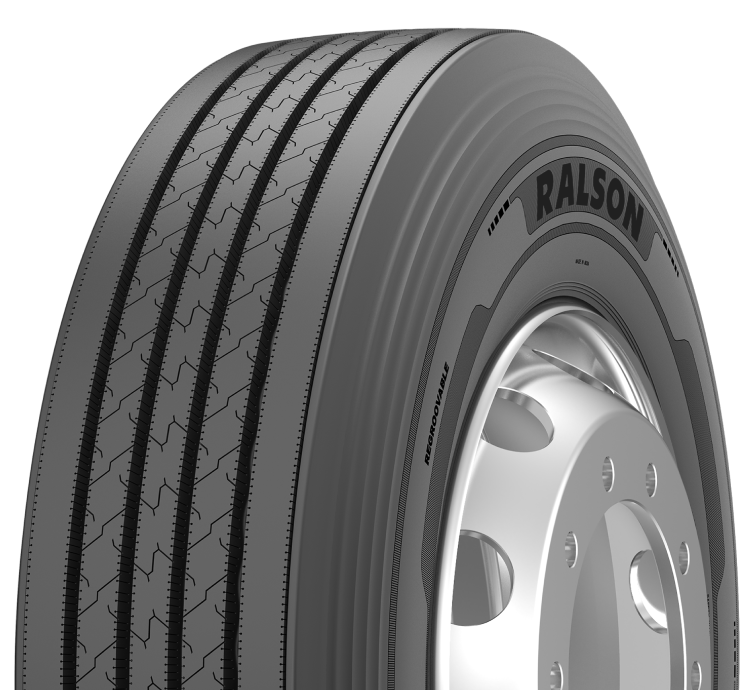

RSL51
Low-heat tread compound
Resists lateral forces and reduces wear.
Engineering-enhanced tread design
Distributes pressure evenly for consistent wear.
Lower shoulder groove absorbs
Impact and protects the shoulder rib under high stress.
Engineered with advanced compounds
Premium materials, and seasoned sacrificial grooves.
Advance polymers and reinforcing agents
Are used to maximize the tire life.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 16H | 146/143M | 12.7 | 9.00 | 1014 | 298 | 3000@830 | 2725@830 | N | Y | N |
| 11R22.5 | 16H | 146/143M | 12.7 | 8.25 | 1052 | 298 | 3000@830 | 2725@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 16H | 146/143M | 18.0 | 9.00 | 1018 | 298 | 6610/120 | 6005/120 |
| 295/75R22.5 | 14G | 144/141M | 18.0 | 9.00 | 1018 | 298 | 6175/110 | 5675/110 |
| 11R22.5 | 16H | 146/143M | 16.0 | 8.25 | 1052 | 298 | 6610/120 | 6005/120 |
