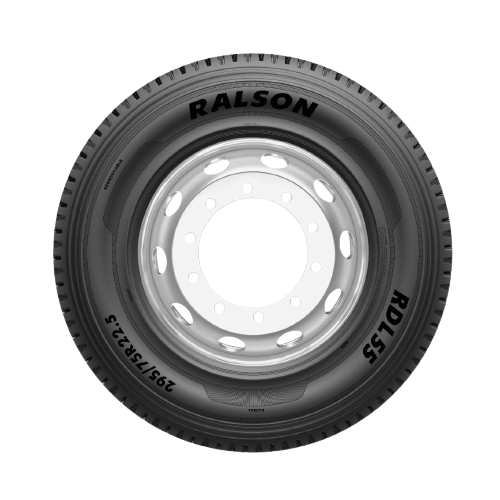

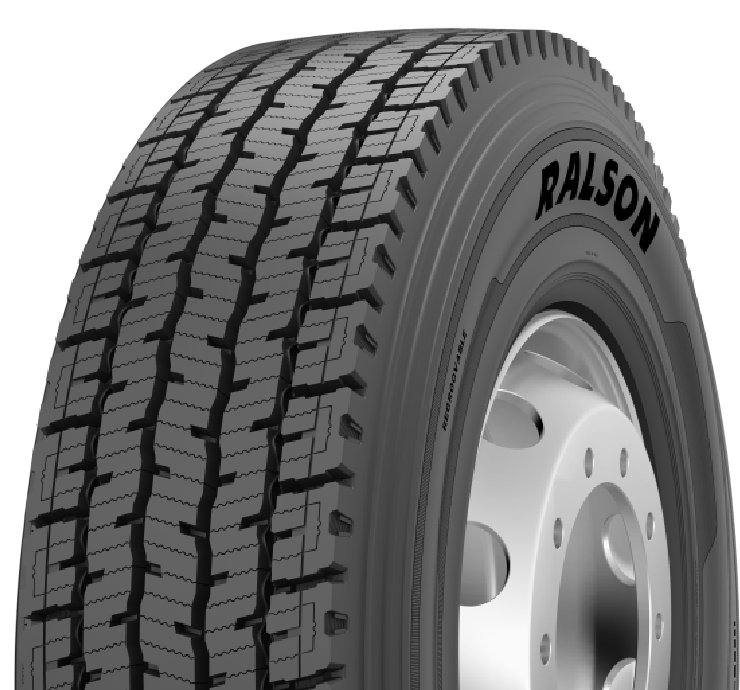

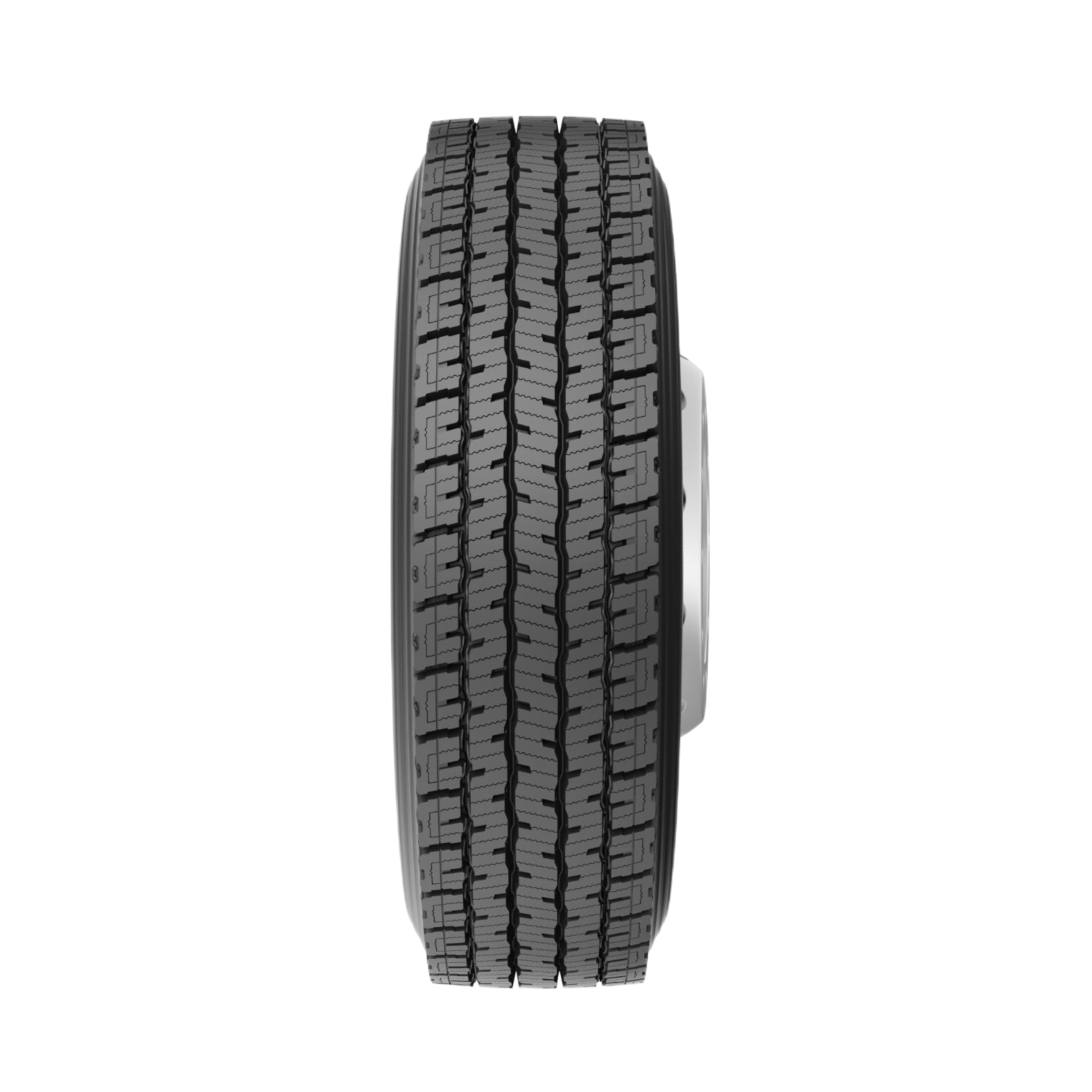

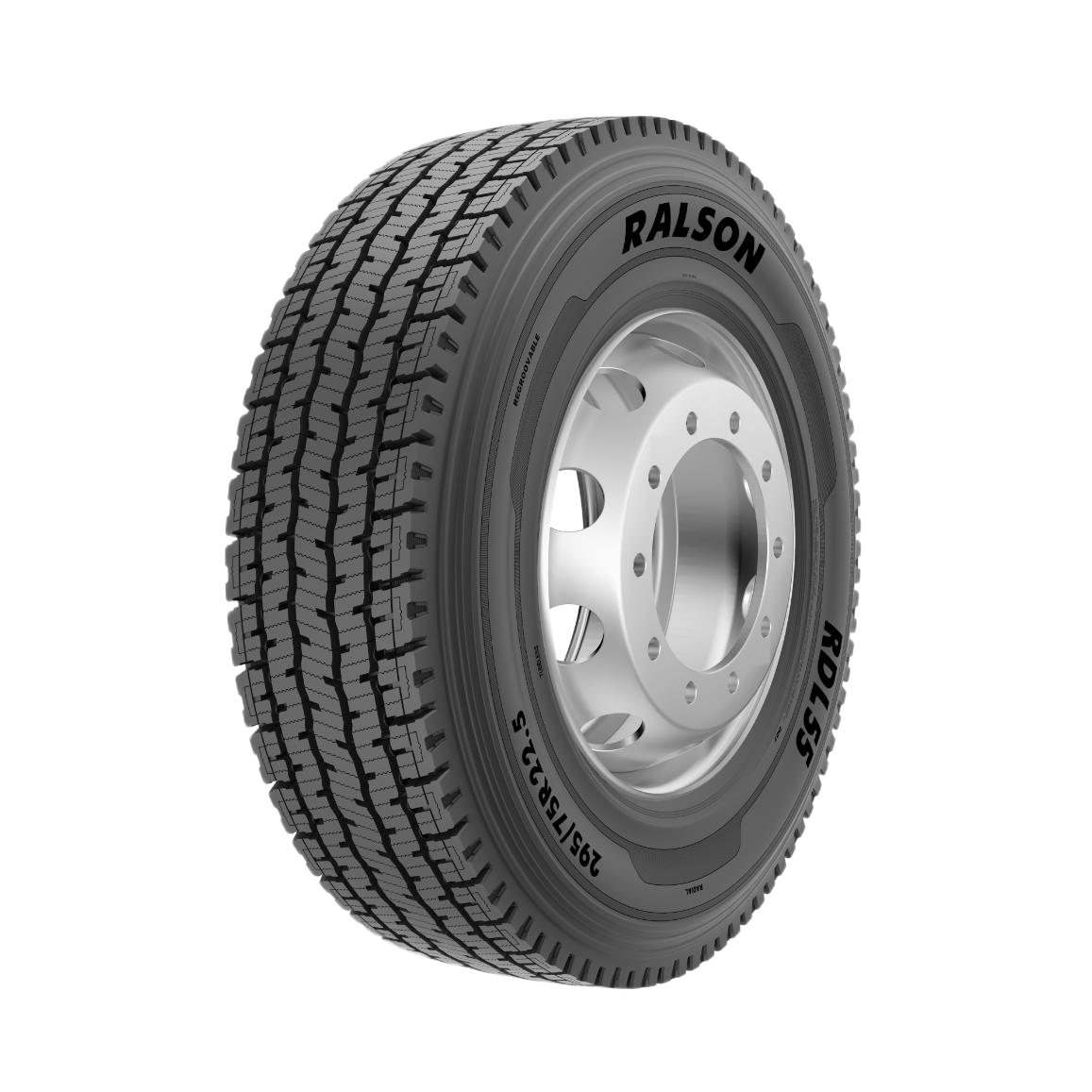

RDL55
Sinusoidal shoulder grooves
Prevent stone retention along the circumference.
Wavy Groove shape Pattern
Allows for slight movement of the tread blocks.
Dense centre sipes
Create multiple biting edges for traction.
Open shoulder design
Improves traction and heat dissipation.
Optimised
Rib-to-block ratio.
Integrated tie-bar blocks
Improve traction and block stability.
Advance polymers and reinforcing agents
Are used to maximize the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 16H | 146/143M | 19.5 | 9.00 | 1029 | 298 | 3000@830 | 2725@830 | N | Y | N |
| 11R22.5 | 16H | 146/143M | 19.8 | 8.25 | 1063 | 296 | 3000@830 | 2725@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 16H | 146/143M | 24.6 | 9.00 | 1029 | 298 | 6610/120 | 6005/120 |
| 295/75R22.5 | 14G | 144/141M | 24.8 | 9.00 | 1028 | 300 | 6175/110 | 5675/110 |
| 11R22.5 | 16H | 146/143M | 24.9 | 8.25 | 1063 | 296 | 6610/120 | 6005/120 |
