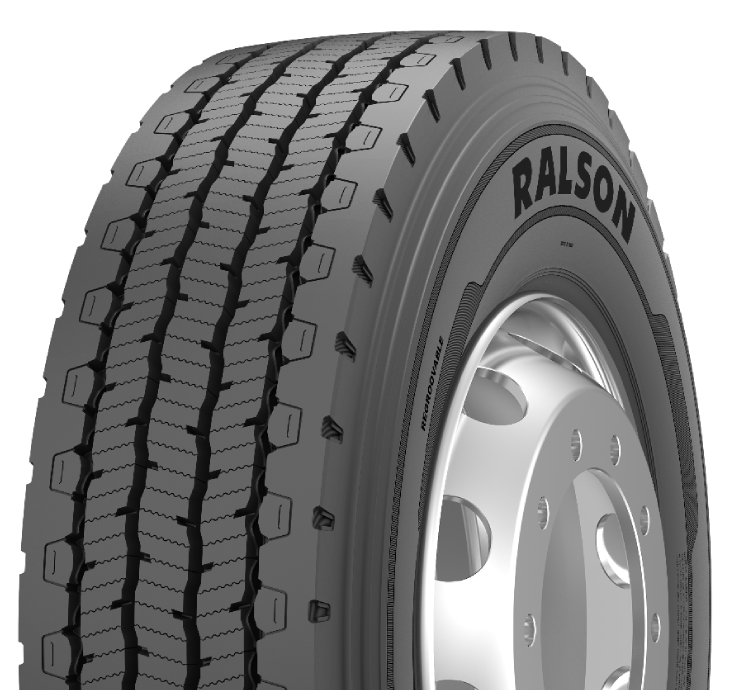

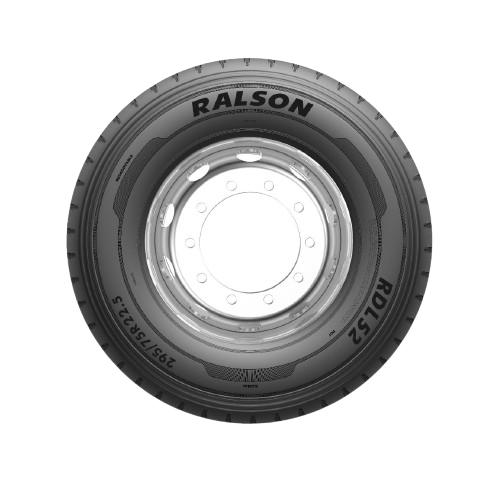

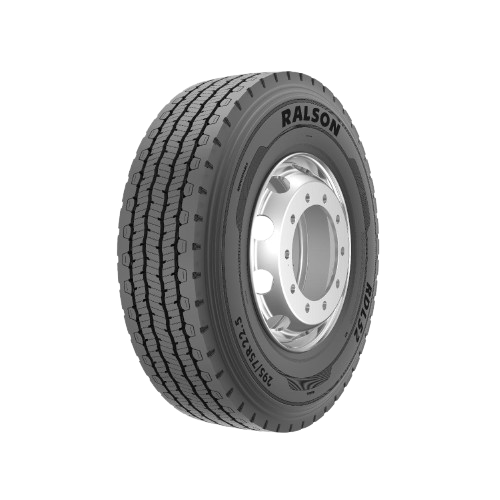

RDL52
.png)

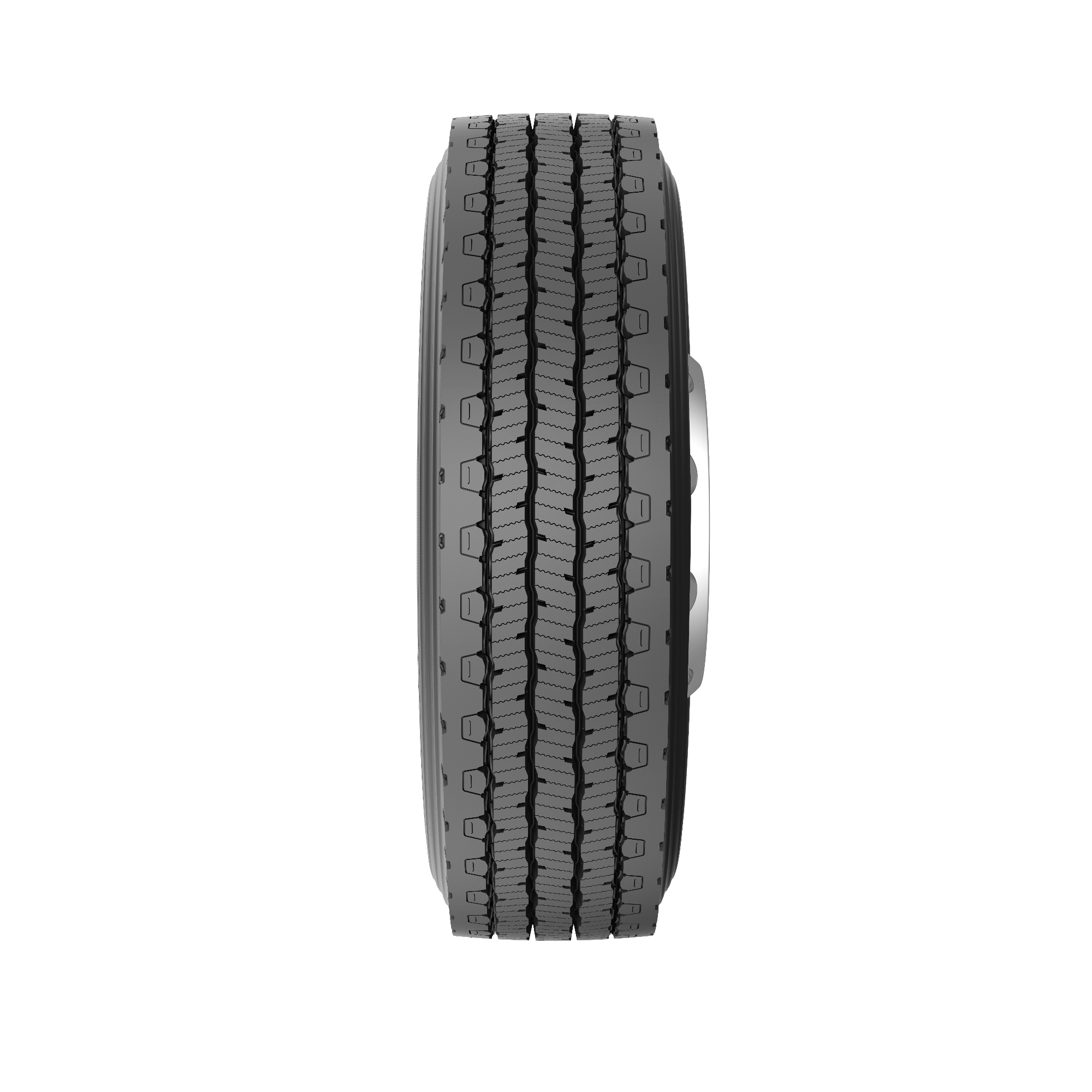

Sinusoidal Groove with Stone Ejectors
Prevents stones from lodging in the tread.
Moderate Meandering Grooves
Work well on straight runs and light-to-moderate curves.
Multi-Dimensional sipe
Maintains traction, braking grip, and stability as the tyre ages.
Close Shoulder Pattern
Reduces rolling resistance and stabilises high-speed handling.
Balanced rib configuration
Delivers stability and longer mileage.
Advance polymers and reinforcing agents
Are used to maximize the tire life in adverse operating conditions.
Compare tire conditions across usage percentages to identify subtle wear patterns
before they turn into risks.
25%
50%
75%
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (MM) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (KG@KPA) | DUAL MAX LOAD (KG@KPA) |
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 16H | 146/143M | 19.5 | 9.00 | 1029 | 298 | 3000@830 | 2725@830 | N | Y | N |
| 11R22.5 | 16H | 146/143M | 19.8 | 8.25 | 1062 | 296 | 3000@830 | 2725@830 | N | Y | N |
| Tire Size | PR/LR | LI / SI | TREAD DEPTH (32NDS) | RIM SIZE (INCH) | MAX. OVERALL DIA (MM) | MAX. OVERALL WIDTH (MM) | SINGLE MAX LOAD (LBS/PSI) | DUAL MAX LOAD (LBS/PSI) |
|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 16H | 146/143M | 24.6 | 9.00 | 1029 | 298 | 6610/120 | 6005/120 |
| 295/75R22.5 | 14G | 144/141M | 24.8 | 9.00 | 1029 | 302 | 6175/110 | 5675/110 |
| 11R22.5 | 16H | 146/143M | 24.9 | 8.25 | 1062 | 296 | 6610/120 | 6005/120 |
